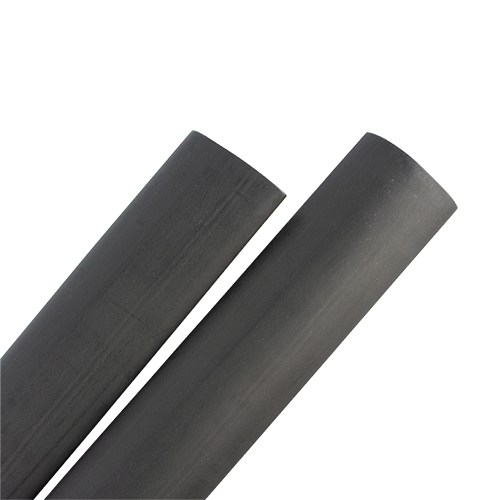

ProFIT™ HML Polyolefin Heat Shrink Tubing | 1 1/2-inch, 3:1

ProFIT™ HML Polyolefin Heat Shrink Tubing | 1 1/2-inch, 3:1

ICO RALLY

Call For Pricing

In stock

EDMO # HML-1 1/2B

MFR Part # HML-1 1/2 BLACK

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

ProFIT® HML is radiation crosslinked heat shrink tubing that is environmentally sealed with an adhesive lining ideal for use in a wide variety electrical applications. When heated, the adhesive coating melts and flows to form a positive seal. This coating adheres to the outer tubing and the surface below to create an effective moisture barrier. HML tubing remains flexible to withstand repeated bending of the substrate below.

This HML polyolefin heat shrink (EDMO# HML-1 1/2B):

1 1/2-inch expanded inside diameter
3:1 shrink ratio
Colored black

Features

Ideal for cable repair
Adhesive bond to a variety of plastics, rubber, and metal
Applicable specifications: SAE-AMS-DTL-23053/4, Class 3
Shrink Ratio: HML: 3:1 and HML4X: 4:1
Shrink Temperature: 230°F (110°C)
Standard Colors: black
Standard Shipping Length: 4-foot lengths

Also Purchased

Specifications

Operating Temperature Range:

-67°F to 230°F (-55°C to 110°C)
Minimum Expanded I.D.:

1.575 in (40.00 mm)
Maximum Recovered I.D.:

0.512 in (13.00 mm)
Recovered Wall Thickness:

0.100 in (2.54 mm)

Product Codes

Mfr Part No

HML-1 1/2 BLACK
SCHEDULE B CODE

8536695050
