H-ML Immersion Resistant Solder Sleeve | 0.020 – 0.075in, 24 AWG Lead, 150°C


SUMITOMO

EDMO#: HML-11

MFR#: STS H-ML-11

Call for Pricing

Also Purchased

Description

H-ML series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

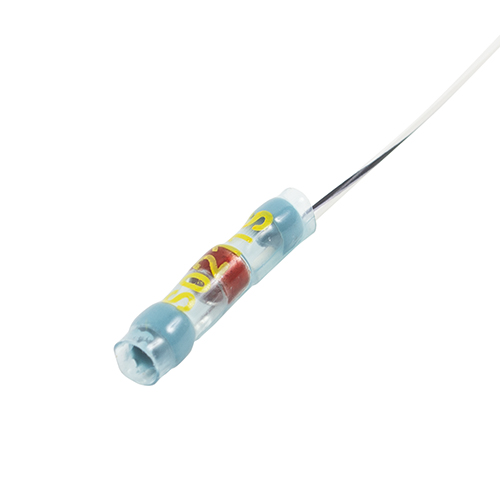

This H-ML solder sleeve terminal (EDMO# HML-11) fits wire diameters of 0.020 – 0.075 inch (øD4).Includes 24AWG wire lead without braid. *see Datasheet

Features

  • Includes 24 AWG pre-installed wire lead per MIL-W-22759/32-24-90
  • Mil-Spec. AS83519/2 Qualified
  • Immersion Resistant
  • 150°C Operating Temperature
  • 183°C Solder Melt Temperature
  • Convection or infrared heated installation
  • Sn63 (RMA flux)

Specifications

Cable Size:
ØD4: 0.020 – 0.075 in (see datasheet)

Operating Temperature:
-55°C to 150°C

Solder Melt Temperature:
183°C

Solder Type:
Sn63 (63% tin ,37% lead)

Temperature Indicating Paint (TI):
yes

Jacket Type:
Radiation cross-linked, modified polyvinylidene fluoride

Lead Wire Include:
Yes

Braid Included:
No

Environmental Seals:
Yes

RoHS Compliant:
No

Flux:
RMA

Product Codes

Mfr Part No :

STS H-ML-11

MIL SPEC :

M83519/2-11

ECCN :

EAR99

MIL SPEC :

M83519/2-11

NSN :

5940-01-135-7089

SAE :

AS83519/2-11

SCHEDULE B CODE :

8536695050
