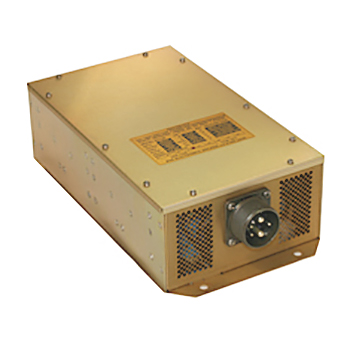

HS120 Frequency Converter | 1200 VA, 115 VAC, 400 Hz

Product Description

The HS120 from KGS is a 50/60 Hz AC solid state frequency power converter to convert a 115/200 VAC, 3 phase, 400 Hz input to either 115 VAC, 60 Hz  or 230 Hz VAC, 50 Hz sine wave output. A crystal controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave is included for efficient and reliable operation.

The HS120 is designed to power laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers and medical equipment in mobile, marine, and ground transport applications.

Specifications

• Weight:
  7.5 lb
• Input Current:
  4.5 A/PH
• Output Voltage:
  115 VRMS ±5%
• Output Current:
  10.4 ARMS
• Output Frequency:
  60 Hz ±0.5%
• Output Power:
  1200 VA
• Input Voltage:
  115/200 VAC ± 10 VAC, 3 phase
• Input Frequency:
  400 Hz ±100 Hz
• Output Wave Form:
  Sine
• Output Phase:
  Single
• Harmonic Distortion:
  0.5% (nominal)
• Power Factor:
  +.8 to -0.8
• Efficiency:
  87%(nominal)
• Response Time:
  300 uSec (no load to full load)
• Regulation:
  1% Line, 1% Load, 2.5% Temp.
• Overload Capacity:
  110% of the rated output power for a period of 2 hours; 150% of the rated output current for a period of 5 minutes (minimum). When the operating temp. >55°C, the overload setting is internally limited to 135% ± 10% of the rated output power.
• Protection Circuits:
  The converter will shutdown under the following conditions: Input voltage > 135 VAC ± 5 VAC Input voltage < 95 VAC ± 5 VAC Internal, high ambient temperature Short circuit condition
• Remote ON-OFF:
  Yes
• Operating Temperature:
  -55°C to 71°C (-65°F to +160°F)
• Altitude:
  55,000 ft
• Environmental:
  DO-160C env. cat. F3ZBB[LV]XXXXXXBXAXXXBXXX
• Cooling:
  Thermostatically controlled, brushless fan.

Product Codes

• Mfr Part No
  HS120
• NSN
  5895-01-585-6996
