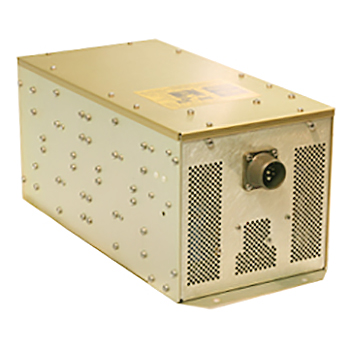

HS200 Frequency Converter | 115 VAC, 60 Hz
K G S ELECTRONICS
EDMO#: HS200
MFR#: HS200
Description
The HS200 & HB200 are highly efficient, lightweight AC frequency power converters. These models utilize the latest state of the art solid state circuitry to convert a 115/200 Vac, 400 Hz, 3 PH input to 115 Vac, 60 Hz or 230 Vac, 50 Hz sine wave output.
Design features include a crystal-controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave power conversion scheme for efficient and reliable operation.
The HS200 and HB200 static frequency changers are designed to power laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers and medical equipment in airborne, marine and ground mobile applications.
Features
- Crystal-controlled oscillator for precise frequency stability
- Pulse-width-modulated square-to-sine wave conversion
- 115/200 VAC, 400 Hz, 3-phase input to 115 VAC/60 Hz or 230 VAC/50 Hz output
- Lightweight, solid-state design for efficient, reliable operation
Specifications
Weight:
17.7 lbs (8.04 kg)
Input Voltage:
115/200 VAC ± 10 VAC
Input Frequency:
400 Hz ± 200 Hz
Output Voltage:
115 VAC (108 to 120 VAC)
Output Frequency:
60 HZ (± 0.1 Hz)
Output Wave Form:
Sine
Harmonic Distortion:
0.5% (nominal)
Power Factor:
+0.8 to -0.8
Output Phase:
Single
Efficiency:
87% (nominal)
Response Time:
300 uSec (No Load to Full Load)
Regulation:
1 % Line, 1 % Load, 2.5 % Temperature
Overload Capacity:
110% of rated power for 2 hrs, 150% of rated power for 5 minutes
Protection Circuit:
The inverter will shutdown under the following conditions:
Input voltage >137 ± 5VAC
Input voltage < 80VAC ± 20VAC
Internal high ambient temperature
Short circuit condition (after 2 to 15 Sec)(manual reset)
Remote On/Off:
Yes
Operating Temperature:
-55°C to 71°C (-65°F to 160°F)
Altitude:
55,000 ft
Cooling:
Thermostatically controlled brushless fan (ON above 50°C)
Environmental:
RTCA DO-160C Env. Cat. F3ZBB[ LV] E1XXXXXBXAXXXBXXX
Product Codes
Mfr Part No :
HS200
SCHEDULE B CODE :
8504.40.0018
