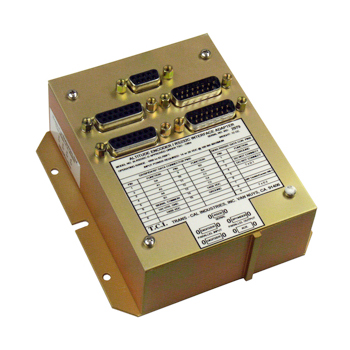

Interface Serializer Adapter / Dual Port

Product Description

The IA-RS232C-D is a dual port, solid-state interface adapter (serializer) that provides a simple and robust method of converting parallel data into serial data for transmission to multiple aircraft systems. This adapter is designed to convert parallel, 10-bit, ICAO pressure altitude data  from two altitude reporting digitizers to a fan-out consisting of two RS-232 compliant outputs.

The IARS232C interfaces support two baud rates: 1200 bps for use with navigation devices by UPS Aviation Technologies, and 9600 bps for use with navigation devices by Trimble and Garmin.

Specifications

• Weight: 12 oz
• Operating Altitude: -1,000 to 62,700 ft (Dependent on input device range) When using a Trimble or Garmin device, the IA-RS232C will not report below zero feet
• Operating Voltage: 12 to 30 VDC
• Operating Current: 0.090 Amp (90mA)
• Operating Temperature: -20°C to 85°C
• Storage Temperature: -55°C to 85°C
• Warm-up Time: No warm-up required
• Accuracy: This device repeats the data from the source altitude reporting device with 100% accuracy
• Serial Altitude Data Output Port Specification (DE-9S Connector):
• Maximum Cable Length: 50 Feet. (15.24 meters)
• Code Format: ASCII
• Communication Method: Asynchronous
• Transmission Rate: Selectable, 1200 bps to 9600 bps
• Update Rate: 1/sec

Product Codes

• Mfr Part No
  IA-RS232C-D
• ECCN
  7A994
• SCHEDULE B CODE
  9014.20.6000
