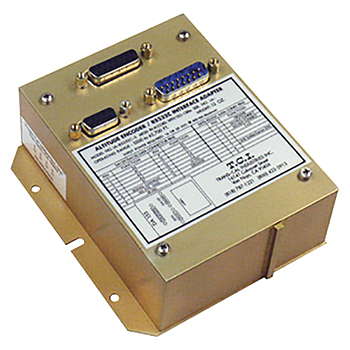

IA-RS232C-S Interface Adapter Serializer

TRANS-CAL INDUSTRIES

Call For Pricing

Available to order

EDMO # IA-RS232CS

MFR Part # IA-RS232C-S

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IA-RS232CS is a solid-state interface adapter (serializer) that provides a simple and robust method of converting parallel data into serial data for transmission to multiple aircraft systems. This adapter is designed to convert parallel, 10-bit, ICAO pressure altitude data to a fan-out consisting of two RS-232 compliant outputs.

The IA-RS232CS interface support two baud rates: 1200 bps for use with navigation devices by UPS Aviation Technologies, and 9600 bps for use with navigation devices by Trimble and Garmin.

Features

Converts ICAO pressure altitude code into RS232 data
Parallel 10-bit to two RS232 outputs
Mounting in pressurized or non-pressurized location
Solid state
1200 bps and 9600 bps baud rates

Specifications

Weight:

12 oz
Operating Altitude:

-1,000 to 62,700 ft (Dependent on input device range) When using a Trimble or Garmin device, the IA-RS232C will not report below zero feet
Operating Voltage:

12 to 30 VDC
Operating Current:

0.090 Amp (90mA)
Operating Temperature:

-20°C to 85°C
Storage Temperature:

-55°C to 85°C
Warm-up Time:

No warm-up required
Accuracy:

This device repeats the data from the source altitude reporting device with 100% accuracy
Serial Altitude Data Output Port Specification (DE-9S Connector):
Maximum Cable Length:

50 Feet. (15.24 meters)
Code Format:

ASCII
Communication Method:

Asynchronous
Transmission Rate:

Selectable, 1200 bps to 9600 bps
Update Rate:

1/sec
