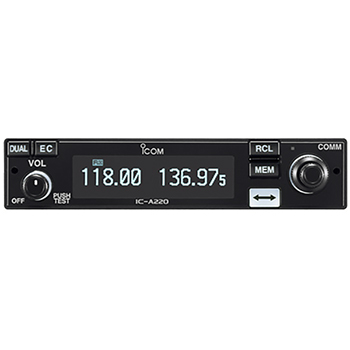

IC-A220T VHF Airband Transceiver | Panel Mount, TSO

ICOM AMERICA

Call For Pricing

Available to order

EDMO # IC-A220T

MFR Part # A220TSO 71 USA

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IC-A220 VHF Airband Transceiver features an innovative, easy to read OLED display. It provides higher contrast, wider viewing angle of nearly 180 degrees, and faster response time than a conventional LCD. The most frequently used FLIP-FLOP (Frequency exchange) switch button is designed large enough to be pushed with ease. Adjustable audio level and squelch control functions are also featured.

The IC-A220 also has a built-in voice-activated intercom function allowing the pilot to talk with the copilot via the headset. Additionally, the IC-A220 has 20 memory channels and 20 history memory channels respectively. Often used memory channels can be instantly recalled. Group memory channels are organized into 10 memory channels by five groups (total 50 channels). Weather channel scanning function searches for weather channel signals.

When combined with the IC-A220, the optional PS-80 power supply provides a convenient base station operation on the ground.

This version (EDMO# IC-A220T) is TSO approved and includes the panel mounting tray and install kit.

Features

Meets RTCA-160G requirements for use in strict environments
Used for a primary VHF radio in general aviation (part 23) class aircraft
Accepted for ETSO approval under the TSO/ETSO reciprocal acceptance policy
Bright and easy to read organic light-emitting diode (OLED) display
Wide 170-degree viewing angle with auto dimmer function
The "flip-flop" arrow button allows for easy channel switching
Auto stack memory makes it easier to recall the last 20 channels used
Automatic or manual squelch operation
Built-in DC-DC converter accepts a 12/24V DC power source f
Build-in, voice-activated intercom function
Industry-standard, 25-pin D-sub connector
20 regular memory channels with a 6-character channel name
50 group memory channels (10 Ch x 5) groups with a channel tag
Automatic weather channel scanning and receive (USA version only)
Dualwatch and priority functions
One-touch access to 121.5 MHz emergency frequency
Sidetone function for monitoring your voice with headset
ANL (automatic noise limiter) function reduces pulse-type noise
Remote control capability
PC programming capability
Dial lock and panel lock
Time-out timer
D-sub 25-pin industry-standard connector for easy installation
Slim 1.34 inch (34 mm) height can be installed in a limited panel space
Two types of menu mode: settings menu and configuration menu

Also Purchased

Specifications

Weight:

1.2 kg (2.65 lb ±10%)
Dimensions (Projections not included):

160 x 34 x 271 mm (6.3 x 1.34 x 10.67 in)
Frequency Spacing:

8.33 kHz/25 kHz
Mode:

AM (6K00A3E, 5K60A3E)
Frequency Stability:

±5 ppm
Operating Temperature:

–20˚C to 55˚C (–4˚F to 131˚F)
Antenna Impedance:

50Ω
Number of Memory Channels:

20 regular, 50 group memory, 20 history, 10 weather channels
Power Supply Requirement:

13.8VDC / 27.5VDC (negative ground)
Certification:

TSO-C128a, TSO-C169a
TRANSMITTER

Output power: 8W (carrier power)
Spurious Emission:

–60 dBc
Modulation Limiting:

70% (Maximum 98%)
Microphone Impedance:

600Ω
RECEIVER

Intermediate Frequencies: 38.85 MHz/450 kHz (1st/2nd)
Sensitivity:

AM (6 dB S/N): less than 2 μV FM (12 dB SINAD) less than 1.4 μV
Selectivity:

25 kHz spacing: ±3 kHz/±22 kHz (6 dB/60 dB) 8.33 kHz spacing: ±2.778 kHz/±7.37 kHz (6 dB/60 dB)
Spurious Response:

More than 74 dBμ
Audio Output Power

External SP: 5 W with a 4Ω load Headphone: 60 mW with a 500Ω load
Certification:

TSO-C128a, TSO-C169a
