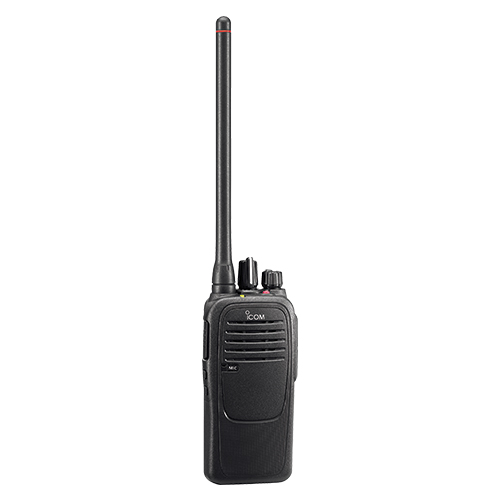

VHF/UHF Handheld Transceiver | 136–174 MHz, 16 channel, No LCD Display or Front Keypad

ICOM AMERICA

Call For Pricing

Available to order

EDMO # IC-F1000

MFR Part # IC-F1000 01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand, designed to be the go-to for entry- to mid-level radio. Three model choices, basic—no display, simple—display with simple keypad, and full—display and full DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged, waterproof, and dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses, such as those involved in education, hospitality, and retail.

This IC-F1000 handheld transceiver (EDMO# IC-F1000) has no LCD display or front keypad, 136–174 MHz frequency coverage, and 16 channels.

Features

136–174 MHz version
1500 mW large volume audio from Icom custom speaker
Improved sound clarity
Compact and lightweight
IP67 waterproof and dust-tight protection
Tested to 12 categories of MIL-STD-810-G environmental tests
DTMF autodial memories
16-position rotary selector and ON/OFF volume knob
“Shift key” function increases number of programmable key assignments
Up to 14 hours of operating time with supplied BP-279 battery pack
Eight character alphanumeric display (Ten-keypad/simplekeypad versions)
Three color LED
16-code inversion voice scrambler
Radio Stun/Revive/Kill commands (2-Tone and 5-Tone, RX only)
Radio Stun/Revive commands (MDC, RX only)
Auto TX function (2-Tone and 5-Tone)
MDC emergency call with open microphone function (MDC, RX only)
Man down function
Lone worker function
Motion and stationary detection function
Surveillance function temporarily turns OFF the beep and LED indicator
Power ON password (for the simple type and 10-key type)
Emergency key for emergency call
CTCSS and DTCS tone
2-Tone and 5-Tone
MDC PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), Revive (RX)
Up to 100 ID numbers and names can be saved to show the alias name, instead of the ID number
BIIS PTT ID transmission
Priority scan monitors one or two priority channels while scanning non-priority channels
Mode dependent scan automatically changes the scan list according to the operating channel
Power ON scan function
Talk back timer
Channel announcement function
VOX function for hands-free operation
Audio compander
Siren sound for security alarm

Specifications

Weight:

8.5 oz (240 g)
Dimensions:

2.1 x 4.4 x 1.0 in (52.2 x 111.8 x 24.5 mm)
Frequency Coverage:

136–174 MHz
Number of Channels:

16 Channels
Type of Emission:

16K0F3E, 11K0F3E
Power Supply Requirement:

7.5 VDC (Nominal)
Current Drain:

Tx: 1.3 A Rx: 500 mA/77 mA (Max. Audio (Internal SP)/Standby)
Antenna Impedance:

50 Ω
Operating Temperature:

-22°F to 140°F (-30°C to 60°C)
Output Power:

5 W, 2 W, 1 W
Maximum Frequency Deviation:

± 5.0 kHz (@ 25 kHz), ± 4.0 kHz (@ 20 kHz), ± 2.5 kHz (@ 12.5 kHz)
Spurious Emission:

70 dB (Min)
Frequency Stability:

± 2.5 ppm
Audio Harmonic Distortion:

1.0% (Typical) (@ 25/20 kHz), 1.5% (Typical) (@ 12.5 kHz) (at AF 1 kHz 40% deviation)
FM Hum and Noise (Without CCITT Filter):

46 dB (Typical) (@ 25 kHz), 40 dB (Typical) (@ 12.5 kHz)
External Microphone Connector:

3-conductor 2.5 (d) mm (1/10)/2.2 kΩ
Sensitivity:

At 12 dB SINAD: 0.25 μV (Typical) At 20 dB SINAD: –4 dBμV (Typical) emf
Adjacent Channel Selectivity:

TIA-603D: 76 dB (Typical) (@ 25 kHz), 53 dB (Typical) (@ 12.5 kHz) TIA-603A: 78 dB (Typical) (@ 25 kHz), 71 dB (Typical) (@ 12.5 kHz)
Spurious Response Rejection:

70 dB (Min)
Intermodulation Rejection:

74 dB (Typical)
Hum and Noise (With CCITT Filter):

51 dB (Typical) (@ 25 kHz), 45 dB (Typical) (@ 12.5 kHz)
AF Output Power (At 5% Distortion):

Internal: SP 1500 mW (Typical) (With 8 Ω load) External: SP 400 mW (Typical) (With 8 Ω load)
External Speaker Connector:

2-conductor 3.5 (d) mm (1/8)/8 Ω
