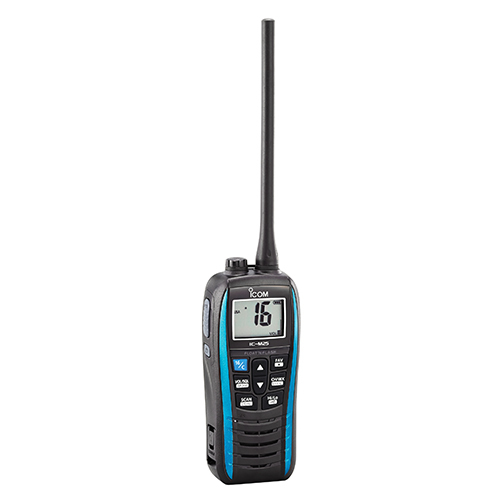

M25 VHF Marine Handheld Transceiver Radio | Float 'N Flash, Marine Blue

M25 VHF Marine Handheld Transceiver Radio | Float 'N Flash, Marine Blue

ICOM AMERICA

Call For Pricing
Available to order
EDMO # IC-M25 01B
MFR Part # M25 01 BLUE
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M25 series floating marine VHF radio floats and flashes when dropped into the water.A slim and lightweight design at just 7.8oz. Convenient charging via USB from a variety of electronic devices.

Model M25 01 BLUE handheld has a marine blue accent color.

Features

  • Large LCD with large channel number and status icons
  • Front panel buttons provide simple and straightforward operation
  • AquaQuake™ draining function removes water from the speaker
  • 4-step battery life indicator
  • Weather channel with weather alert
  • Dual/Tri-watch functions
  • Instant access to Channel 16 or programmable call channel
  • Favorite channel function
  • Monitor function opens noise squelch
  • Auto scan function
  • LCD auto backlighting

Specifications

  • Weight: 7.8 oz
  • Dimensions: 2.2 x 1.2 x 5.3 in.
  • Frequency range: Tx 156.025–157.425 MHz Rx 156.050–163.275 MHz
  • Usable channel groups: INT, USA, CAN, WX channels
  • Type of emission: 16K0G3E (FM)
  • Power supply voltage: 3.7 V DC nominal
  • Current drain: Tx 2.3 A Rx (Internal SP/External SP) 300 mA/200 mA (Max. audio)
  • Operating temperature range: –20°C to +60°C; –4°F to +140°F
  • Antenna impedance: 50 Ω
  • TRANSMITTER
  • Output power: 5 W (approximately)/1 W
  • Max. frequency deviation: ±5.0 kHz
  • Frequency stability: ±10 ppm
  • Spurious emissions: –68 dBc typical
  • Adjacent channel power: 70 dB
  • Residual modulation: 40 dB
  • RECEIVER
  • Sensitivity: 0.25 µV typical (at 12 dB SINAD)
  • Squelch sensitivity: 0.25 µV typical (at threshold)
  • Adjacent channel selectivity: 70 dB typical
  • Spurious response: 70 dB typical
  • Intermodulation: 70 dB typical
  • Audio output power (at 10% distortion): Internal SP 550 mW typical (12 Ω load) External SP 300 mW typical (4 Ω load)

Product Codes

  • Mfr Part No
    M25 01 BLUE
