M37 VHF Marine Handheld Transceiver Radio | Float 'N Flash, 6W


ICOM AMERICA

Call For Pricing
Available to order
EDMO # IC-M37
MFR Part # IC-M37
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

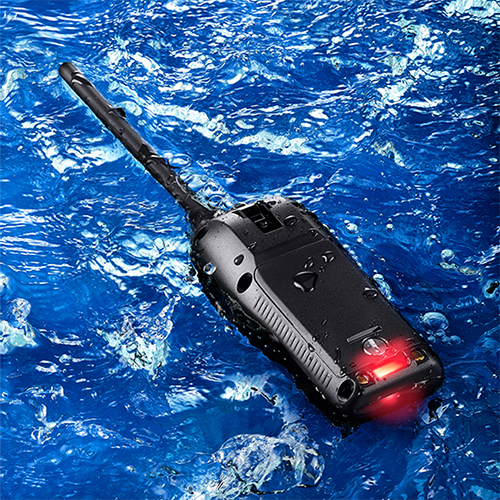

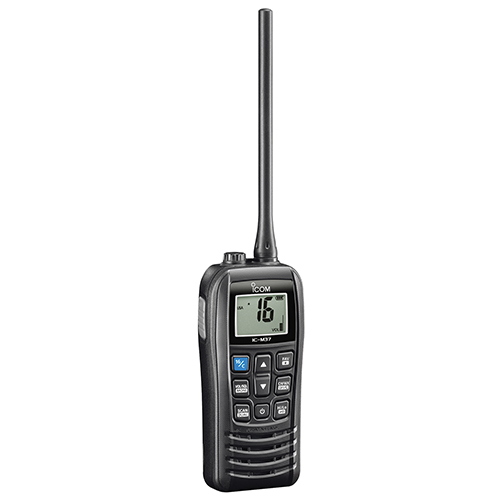

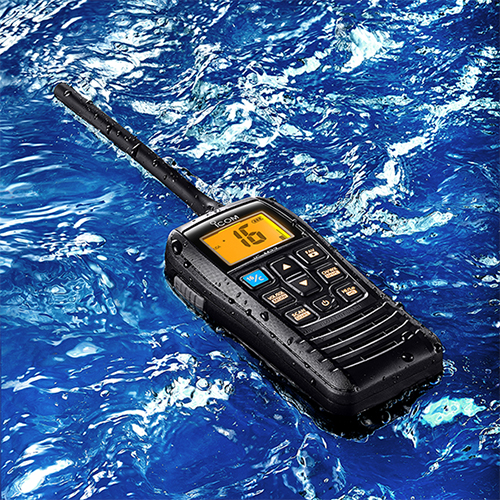

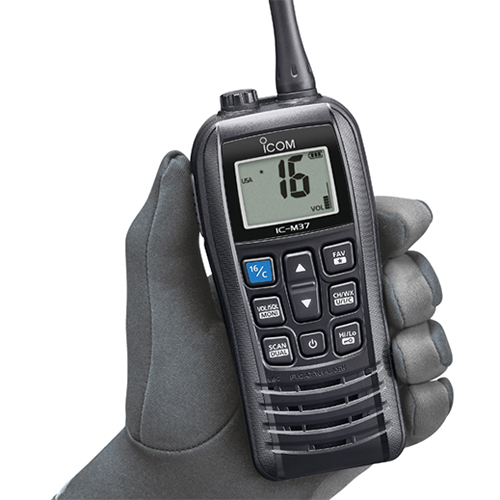

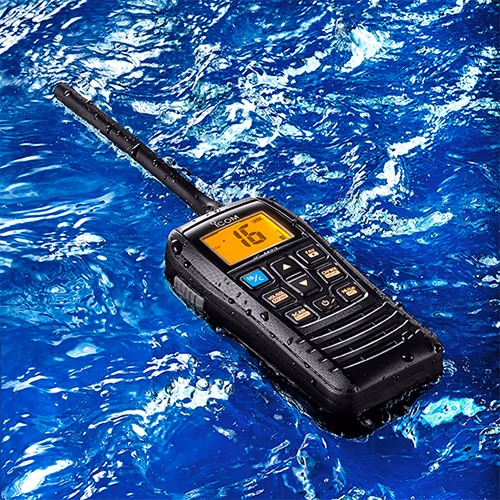

The IC-M37 VHF Handheld Marine Radio is designed for commercial and recreational boaters. The M37 handheld radio includes a six-watts of power output as well as Icom's exclusive "Float 'n Flash" and a large capacity standard battery pack. The M37 is the perfect size and has an easy-to-grip design with large keys. A bigger LCD screen shows large channel numbers and status icons for easy readability.

Features

  • Six-watt power output
  • Long-life 2350 mAh Li-ion battery for 12 hours of operation
  • IP7 waterproof rating
  • Easy-grip design with large buttons
  • Larger, easy-to-read display
  • Channel history feature stores the last five channels used for easy recall
  • Float'n Flash function
  • 700mW audio output
  • Low battery alert function
  • AquaQuake™ water draining function
  • Dual/Tri-watch function
  • Instant access to channel 16 and Call function
  • Weather channels with weather alert function

Specifications

  • Weight:
    10.3 oz (293 g)
  • Dimensions:
    2.4 x 5.5 x 1.5 in (59.7 x 140.5 x 38.7 mm)
  • Frequency Range:
    Tx: 156.025 MHz – 157.425 MHz Rx: 156.025 MHz – 163.275 MHz
  • Usable Channels:
    INT, USA, CAN, WX channels
  • Type of Emission:
    16K0G3E
  • Current Drain (@ 7.4 VDC):
    Tx (6W / 1W output): 2.75A / 1.0 A Rx (Max. audio, Int/Ext SP): 0.4A / 0.2A
  • Temperature Range:
    -4°F to 140°F (-20°C to 60°C), operating
  • Antenna Impedance:
    50Ω
  • TRANSMITTER:
  • Output Power:
    6 watt (high) / 1 watt (low)
  • Max. Frequency Deviation:
    ±5 kHz
  • Frequency Stability:
    ±10 ppm
  • Spurious Emission:
    -68 dBc, typical
  • RECEIVER:
  • Sensitivity (at 12dB SINAD):
    0.25 µV, typical
  • Squelch sensitivity (Threshold):
    0.25 µV, typical
  • Adjacent Channel Selectivity
    70 dB, typical
  • Spurious response:
    70 dB, typical
  • Intermodulation:
    70 dB, typical
  • Hum and noise:
    40 dB, typical
  • Audio output power (at 10% distortion):
    Int. speaker: 0.7W typ. (8Ω load) Ext. speaker: 0.3W typ. (8Ω load)
  • Supplied Accessories:
    Battery Pack (BP-296) Desktop Charger (BC-235) AC Adapter (BC-217SA) Belt Clip (MP-133) Hand strap

Product Codes

  • Mfr Part No
    IC-M37
