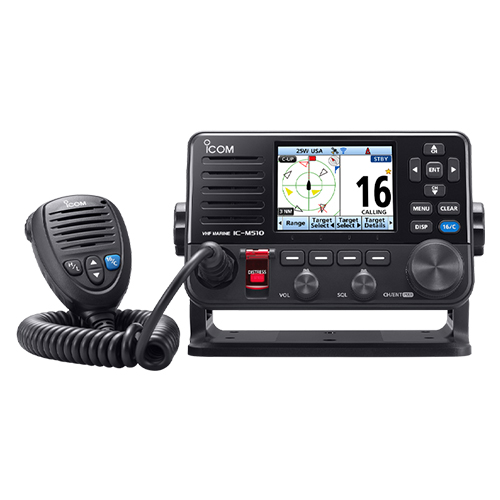

IC-M510 VHF Marine Radio with WLAN Function | Class-D DSC

Product Description

The IC-510 is a VHF marine radio with WLAN function. Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™. Intercom function between your smart device and the radio is also available. The color TFT LCD provides nearly a 180-degree viewing angle. The wide display has a high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

The IC-M510 is slim and easy to install in your boat. It's all-new sleek design is suitable for either panel or trunnion mounting. The Navigation function guides you to a specified waypoint. You can assign up to 100 destinations as waypoints. The IC-M510's internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.

Specifications

• Weight:
  1.6 lb (730 g)
• TX Frequency Range:
  156.025 - 157.425 MHz
• RX
  Frequency Range: 156.050 - 163.275 MHz
• DSC
  Frequency: 156.525 MHz
• Usable Channels:
  USA, CAN, INT, WX
• Type of Emission:
  16K0G3E (FM), 16K0G2B (DSC)
• Power Supply Requirement:
  13.8 V DC (11.7 - 15.9 V DC)
• TX 25 W Output
  Current Drain (at 13.8 V DC): 5.5 A
• RX Max. Audio
  Current Drain (at 13.8 V DC): 3.3 A
• Operating Temperature Range:
  -4°F to 140°F(-20°C to 60°C)
• Antenna Impedance:
  50Ω

Product Codes

• Mfr Part No
  M510 11
