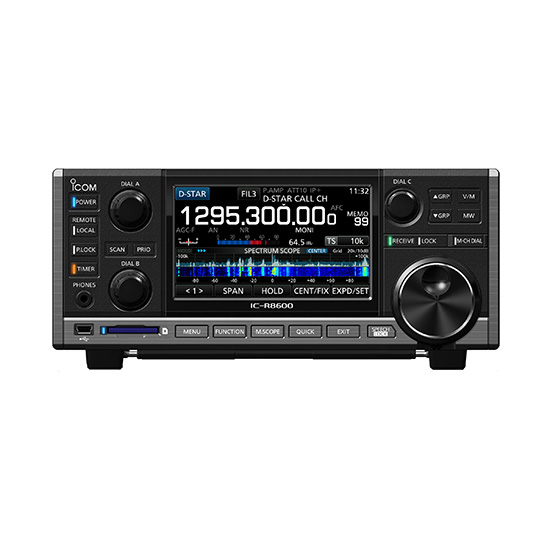

IC-R8600 Communications Receiver | 10kHz-3.0GHz Super Wideband

Product Description

The IC-R8600 is a super wideband 10 kHz to 3 GHz communication receiver that enables a wide variety of signals to be heard and seen in various ways. Diverse digital communication signals can be decoded while advanced FPGA processing technologies implemented provide clarity and accuracy of received signals. With the optional remote control software for a Windows® PC, received audio and spectrum scope data can be transferred through an IP network for monitoring from remote locations.

Specifications

• Weight:
  9.5 lb
• Dimensions:
  8.7 x 9.1 x 3.5 in.
• Antenna connector:
  ANT 1 (0.01–3000 MHz): Type-N (50 Ω) ANT 2 (0.01–30 MHz): PL-259 (50 Ω) ANT 3 (0.01–30 MHz): RCA (500 Ω)
• Mode:
  USB, LSB, CW, FSK, AM, FM, WFM, Digital (D-STAR, P25 Phase 1, NXDN, dPMR, DCR)
• Number of channels:
  2000 regular with 100 groups, 200 auto memory write, 100 skip and 100 scan edge channels
• Scan types:
  Programmed, memory, selected memory, selected mode, auto memory write, priority scan and Δf scan
• Power supply requirement:
  13.8 V DC ±15%
• DC current drain:
  Stand-by: 1.8 A, Maximum audio: 2.0 A
• Operating temperature range:
  –10 ˚C to +60 ˚C; 14 ˚F to 140 ˚F
• Frequency resolution:
  1 Hz
• Audio output power:
  More than 2.0 W (8 Ω load, 10% distortion)

Product Codes

• Mfr Part No
  R8600 02
