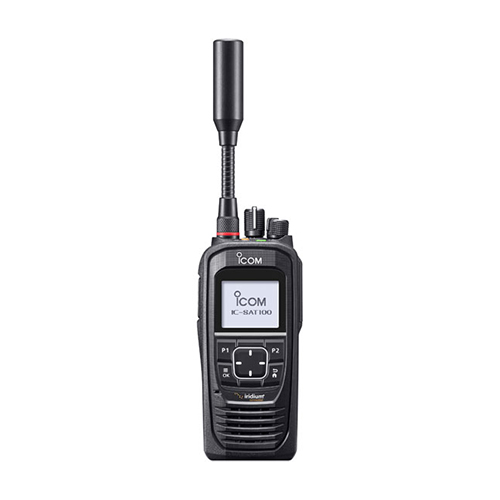

IC-SAT100 Satellite PTT Handheld Radio | Iridium® Network

Product Description

Icom’s IC-SAT100 allows users around the world to communicate with a group of PTT radios at the push of a button. Utilizing the Iridium® satellite network the PTT (Push-To-Talk) two-way radio system is capable of wide area global communication anywhere on the planet including both poles. This network allows you to use the IC-SAT100 in remote, isolated areas without mobile phones or landline network infrastructure or if terrestrial network infrastructure is rendered unusable. Unlike satellite phones the IC-SAT100 can talk with radios in the same talkgroup immediately with real-time low latency communication.

Specifications

• Weight:
• Specification
  12.7 oz (with BP-300 and antenna)
• Dimensions:
• Specification
  2.3 x 5.3 x 1.3 in.
• Display viewing area:
• Specification
  1.3 x 1.1 in.
• Operating temperature range:
• Specification
  -30ºC to 60ºC
• Internal speaker output power:
• Specification
  1500 mW typical (At 5% distortion into an 8 Ω load)
• External speaker output power:
• Specification
  1000 mW typical (At 5% distortion into an 8 Ω load)
• Battery life:
• Specification
  14.5 hours approximate
• Talkgroup:
• Specification
  15 groups (maximum)
• Antenna connector:
• Specification
  SMA

Product Codes

• Mfr Part No
  SAT100

Documentation

• IC-SAT100 Brochure.pdf
