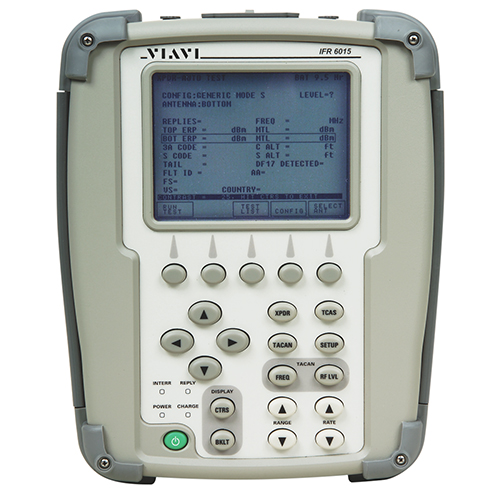

IFR6015 Military Flight Line Test Set

VIAVI

Call For Pricing

Available to order

EDMO # IFR-6015

MFR Part # 72424

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IFR6015 Flight Line Test Set is a compact, lightweight and weatherproof unit designed for testing Transponder Modes 1,2,3A,C,S, TCAS I, II, and Military E-TCAS, TIS as well as DME/TACAN. IFF Modes 1,2 and TACAN are standard on all new units.

Features

Mode S level 1-4, (level automatically determined), FAR Part 43 appendix F, (including proposed Eurocontrol extension), Eurocontrol Elementary and Enhanced Surveillance
Quickly and easily provides accurate measurement of transponder transmitting frequency, power and receiver sensitivity. Predetermined configurations for testing any class of transponder.
ICAO Annex 10 amendment 77
ADS-B TX/RX
TIS
IFF Modes 1 & 2 and TACAN
Tests any DME 1 MHz spaced X or Y channel. Measurements include: interrogator transmitter frequency/peak power, Pulse Repetition Frequency (PRF), P1/P2 width and pulse spacing. Provides accurate range and velocity simulation, station ident, squitter control.
TACAN Test Modes; T/R Norm, T/R Range Only, T/R Inverse, A/A Beacon, A/A Range Only and A/A Inverse
Simulates the airborne environment necessary to allow verification/certification of proper operation of an aircrafts TCAS I and II as well as E-TCAS installations.
Detachable directional antenna
Large 5.7-inch LCD display
Simple user interface

Also Purchased

Specifications

Weight:

8 lb (test set only)
Dimensions:

11.2 x 9.1 x 2.7 in
Use:

Pollution Degree 2
Altitude:

< 4800 meters
Operating Temperature:

-20°C to 55°C
Storage Temp:

-30°C to 71°C
Relative Humidity:

95% (±5%) from 5C°C to 30°C 75% (±5%) from 30°C to 40°C 45% (±5%) from 40°C to 55°C
