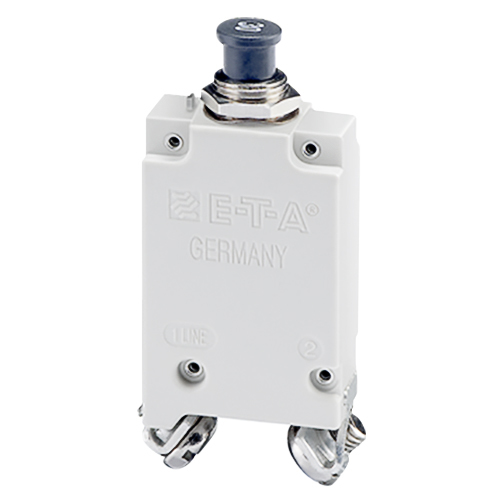

K14LN2 Series Circuit Breaker | 70 Amp Rating, Push/Pull Actuator
E-T-A
EDMO#: K14LN2-70
MFR#: 413-K14-LN2-70A
Description
The K14LN2 series high performance, thermal, single-pole, circuit breaker has a tease-free, trip-free, snap action mechanism with push-pull, on-off manual actuation. The tripped-off position is clearly shown by a colored band.
Includes hardware.
Features
This K14LN2 series circuit breaker (EDMO# K14LN2-70) is rated for 70 amps.
- 70 Amp current rating @ 28 VDC
- Designed for extra low voltage wiring applications
- Suitable for all types of land, sea, and air vehicles as well as defense equipment and battery powered machines.
Specifications
Weight:
65 grams (approx.)
Current Rating:
70 amps
Voltage Rating:
28 VDC
Typical Life:
2,000 operations
Ambient Temperature:
-55°C to 75°C (-67°F to 167°F)
Insulation Resistance:
>100 MΩ (500 VDC)
Interrupting Capacity:
6,000A
Degree of Protection (IEC 60529/DIN 40050):
operating area IP40
terminal area IP00
Vibration:
10 g (56-500 Hz), ± 0.76 mm (10-55 Hz) to VG 95210, sheet 19,
MIL-STD-202, meth. 204,
IEC 60068-2-6, test Fc
Shock:
50 g (11 ms)
to VG 95210, sheet 28, MIL-STD-202, meth. 213, IEC 60068-2-27, test Ea
Corrosion:
96 hours at 5 % salt mist, to VG 95210, sheet 2, MIL-STD-202, meth. 101, IEC 60068-2-11, test Ka
Humidity:
240 hours at 95 % RH
to VG 95210, sheet 7, MIL-STD-202, meth. 106, IEC 60068-2-3, test Ca
Product Codes
Mfr Part No :
413-K14-LN2-70A
ECCN :
EAR99
SCHEDULE B CODE :
8536.20.0020
UL :
YES
