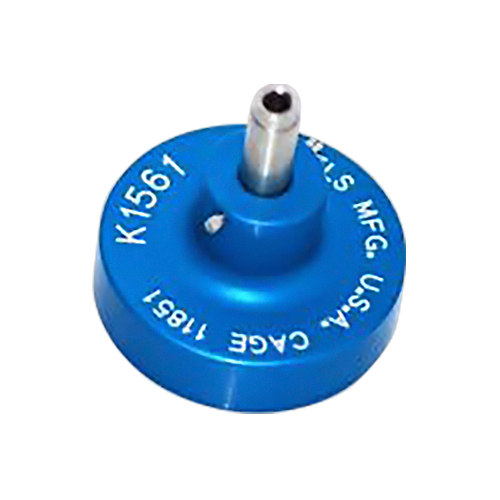

K1561 Positioner | K Series Crimp Tools

Product Description

This positioner is used with the M22520/2-01, AFM8 tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position. It can also be used with the WA22 Pneumatic Crimp Tool Frame and the AFME8B Battery Crimp Tool Frame

Specifications

• Weight:
  0.05 lb
• Wire/Selector:
  22/4, 24/3, 26/2
• Locator Hole Dimension:
  0.065

Product Codes

• Mfr Part No
  K1561
