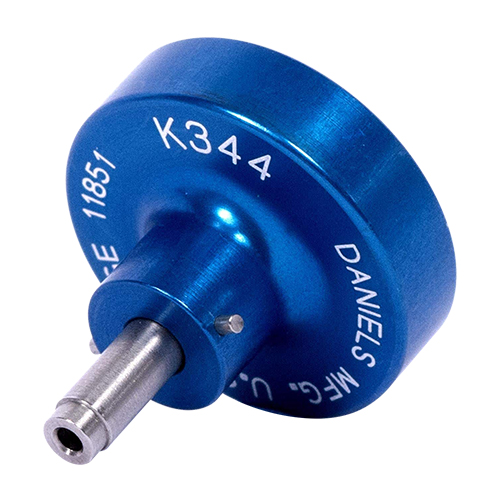

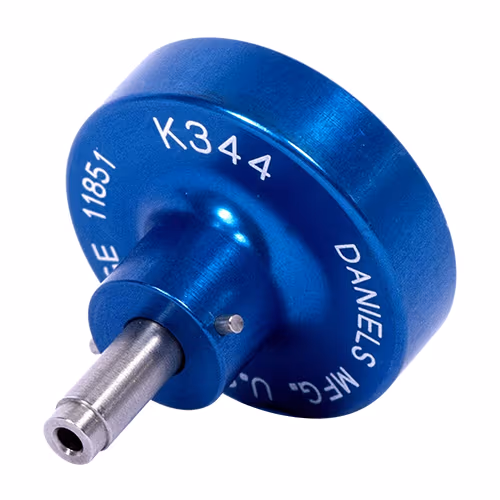

K344 Positioner | Daniels Crimp Tools

DANIELS MFG

Call For Pricing
Available to order
EDMO # K344
MFR Part # K344
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

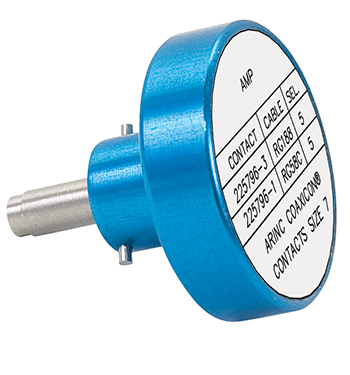

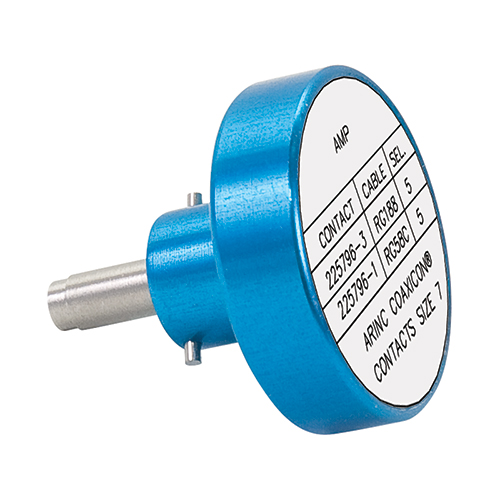

This positioner (EDMO# K344) is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Features

  • Contacts Serviced:
  • 225796-1 ARINC COAXICON Size 7 Contact for RG58C Cables
  • 225796-3 ARINC COAXICON Size 7 Contact for RG188 Cables
  • Compatible Tools:
  • AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
  • AFME8B Battery Crimp Tool
  • WA22 Pneumatic Crimp Tool

Specifications

  • Dimensions:
    0.93 x 0.93 in
  • Locator Hole Dimensions:
    0.065 in
  • Contact Size:
    Size 7
  • Cable Types:
    RG58C, RG188
