K74S Positioner | Daniels Crimp Tools

DANIELS MFG

Call For Pricing
Available to order
EDMO # K74S
MFR Part # K74S
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

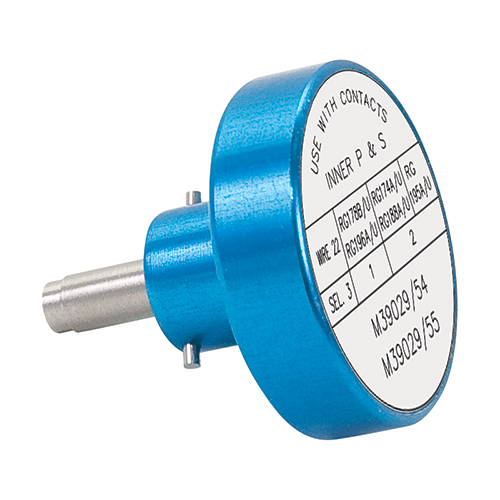

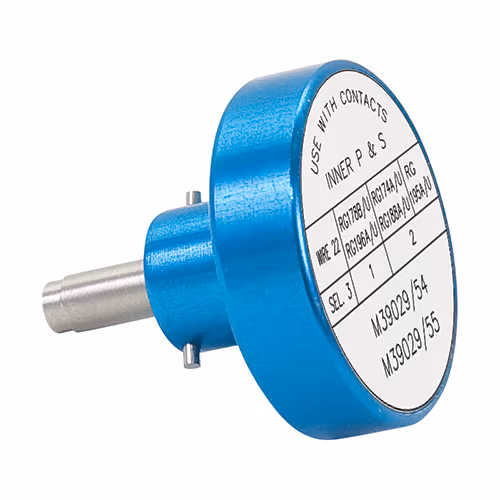

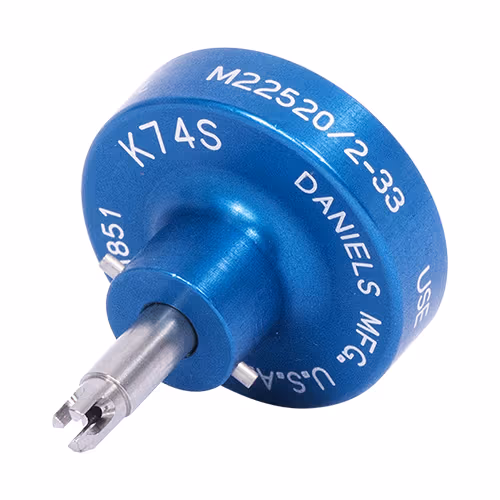

This positioner (EDMO# K74S) is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Features

  • Contacts Serviced:
  • M39029/54-342 Size 12 Pins
  • M39029/55-344 Size 12 Socketss
  • Compatible Tools:
  • AFM8 Hand Crimp Tool Frame
  • WA22 Pneumatic Crimp Tool Frame
  • AFME8B Battery Crimp Tool Frame

Specifications

  • Dimensions:
    0.93 x 1.017 in
  • Locator Hole Dimensions:
    0.059 in
  • Contact Sizes:
    12

Related Products

Product Codes

  • Mfr Part No
    K74S
  • MIL SPEC
    M22520/2-33
