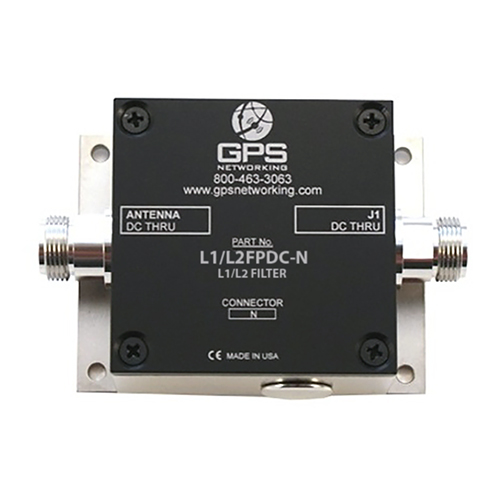

L1/L2 GPS Band Pass Filter | N-type Connector

Product Description

The L1/L2FPDC GPS band pass filter has one input and one output for providing addition filtering for the L1 and L2 frequency band. In normal configuration, the RF output (J1) passes DC from the connected GPS receiver through the input and onto the antenna, allowing the GPS receiver to power the antenna.

Specifications

• Weight:
  10 oz
• Dimensions:
  1.3 x 2.5 x 2.5 in
• Temperature:
  -40°C to 75°C
• Pass DC:
  all ports pass DC
• DC blocked:
  Ant is DC, Pass DC J1
• RF Connector Options:
  N, SMA, TNC, BNC (no charge)

Product Codes

• Mfr Part No
  L1/L2FPDC-N
