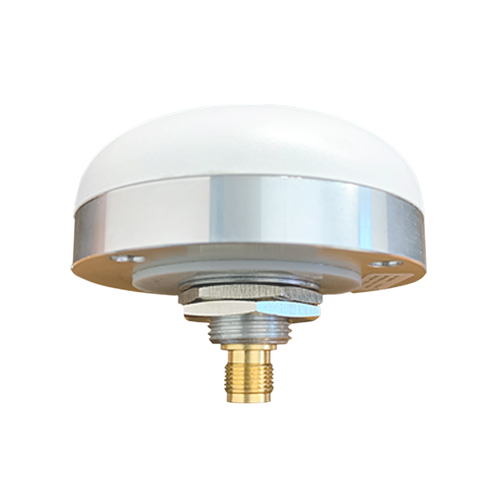

Multi-GNSS Passive High Performance GPS Antenna | Passive, TNC connector


GPS NETWORKING

Call For Pricing
Available to order
EDMO # L1/L2GRRKP
MFR Part # L1/L2GRRKPA-T
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This passive GPS antenna provides coverage for all the L1/L2/L5 Galileo/Glonass Omnistar frequency bands and is designed to meet AAR environmental standards. It features a multi-stacked patch design covering global GNSS frequencies. This GPS antenna is designed  for application where the active electronics are collocated with the receiver as well as for re-radiating GNSS applications. It is hermetically sealed and AAR tested and approved.

This GPS antenna (EDMO# L1/L2GRRKP) has a TNC connector.

Features

  • Full multi-GNSS frequency coverage
  • Passive RF design
  • IP67 ingress protection
  • Designed for PTC rolling stock tracking, military vehicle tracking & asset tracking
  • GNSS indoor re-radiating applications
  • Hermetically sealed
  • AAR tested and approved

Specifications

  • Weight
    7.4 oz
  • Dimensions:
    3 x 1.4 in (76.2 x 35.5 mm)
  • Connector:
    TNC female
  • Radome Color:
    White
  • IP Rating:
    IP67
  • Radome Seal:
    gasket
  • Impedance:
    50Ω, nominal
  • Polarization:
    Right hand circular
  • ESD:
    > 15kV
  • VSWR:
    > 2.0:1, typical
  • Environment Rating:
    AAR Compliant

Related Products

Product Codes

  • Mfr Part No
    L1/L2GRRKPA-T
  • ECCN
    7B994
  • SCHEDULE B CODE
    8529.10.4000
