Passive GPS Antenna Splitter | 1 Input, 2 Output, TNC Connector

Product Description

This loaded DC blocked passive splitter features one input and two outputs for splitting gps RF signals from 1.1 GHz to 1.7 GHz. This splitter is designed to deliver GPS signals within the L1 frequency band to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device up to supply power to the antenna or other up device. The other ports (J2—J4) are DC blocked and loaded with a 200Ω resistor which simulates antenna draw to prevent alarm faults.

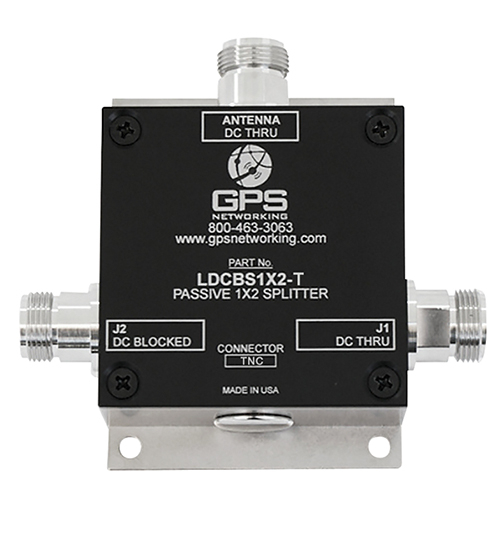

This passive GPS splitter (EDMO# LDCBS1X2T) has one input and two output ports and has TNC connectors.

Specifications

• Weight:
  10.2 oz (289 g)
• Dimensions:
  1.3 x 3.25 x 2.5 in, max. (not including connectors)
• Operating Frequency:
  -57°C to 87°C
• Frequency Range:
  1.1 GHz — 1.7 GHz
• Characteristic Impedance:
  50Ω
• Input SWR:
  2.0:1, max.
• Output SWR:
  2.0:1, max.
• Insertion Loss:
  -3 dB to -5 dB
• Gain Flatness:
  0.25 dB, typical (1.0 dB, max.)
• Amplitude Balance:
  0.1 dB, typical (1.0 dB, max.)
• Phase Balance:
  1.0°, typical (2.0°, max.)
• Isolation:
  L1: 22 dB, min. L2: 15 dB, min.
• Group Delay Flatness:
  0.1 ns, typical (1.0 ns, max.)
• Connector Option:
  TNC connector

Product Codes

• Mfr Part No
  LDCBS1X2-TNC
• ECCN
  7B994
• SCHEDULE B CODE
  8526.91.0070
