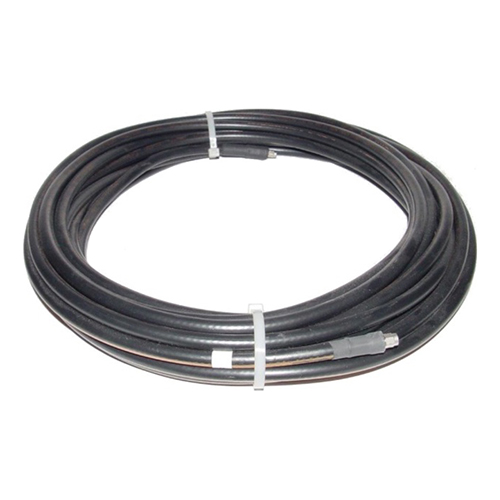

LMR-400 Ultra-Flexible Communications Cable

GPS NETWORKING

Call For Pricing

Available to order

EDMO # LMR400-N

MFR Part # LMR400-N-50FT

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The LMR-400 is an ultra-flexible 50 Ohms coax cable with UV Resistant jacket. It's a great drop-in replacement for RG-8/9913 cables and is designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable.

This LMR-400 cable (EDMO# LMR400-N) is 50 feet long and has N connectors.

Features

Drop-in replacement for RG-8/9913 air-dielectric type cable
Can be used for jumper assemblies in wireless communications systems, short antenna feeder runs, and any application (e.g. WLL, GPS, LMR) requiring an easily routed, low loss RF cable

Specifications

Weight:

3.4 lbs (1.5 kg)
Length:

50 ft
Minimum Bend Radius:

1.0 in (25.4 mm)
Bending Moment:

0.5 ft/lbs (0.68 N/m)
Tensile Strength:

160 lbs (72.6 kg)
Flat Plate Crush:

40 lbs/in (0.71 g/mm)
Inner Conductor Material:

Solid BCCAI
Inner Conductor Dimensions:

0.108 in (2.74 mm)
Dielectric Material:

Foam Polyethylene
Dielectric Dimensions:

0.285 in (7.24 mm)
Outer Conductor Material:

Aluminum Tape
Outer Conductor Dimensions:

0.291 in (7.39 mm)
Overall Braid Material:

Tinned Copper
Overall Braid Dimensions:

0.320 in (8.13 mm)
Standard Jacket Material:

Black Polyethylene
Standard Jacket Dimensions:

0.405 in (10.29 mm)
Installation Temperature Range:

-40°F to 185°F (-40°C to 85°C)
Storage Temperature Range:

-94°F to 185°F (-70°C to 85°C)
Operating Temperature Range:

-40°F to 185°F (-40°C to 85°C)
Cutoff Frequency:

16.2 GHz
Velocity of Propagation:

85%
Voltage Withstand:

2,500 VDC
Peak Power:

16 kW
DC Resistance:

Inner Conductor: 1.39 Ω/1,000 ft (4.56 Ω/km) Outer Conductor: 1.65 Ω/1,000 ft (5.41 Ω/km)
Jacket Spark:

8,000 VRMS
Impedance:

50 Ω
Capacitance:

23.9 pF/ft (78.40 pF/m)
Inductance:

0.060 uH/ft (0.20 uH/m)
Shielding Effectiveness:

>90 dB
Phase Stability:

<10 ppm/°C
