Linear Power Supplies | 28VDC output, 12A

ASTRON

Call For Pricing

Available to order

EDMO # LS-18A

MFR Part # LS-18A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

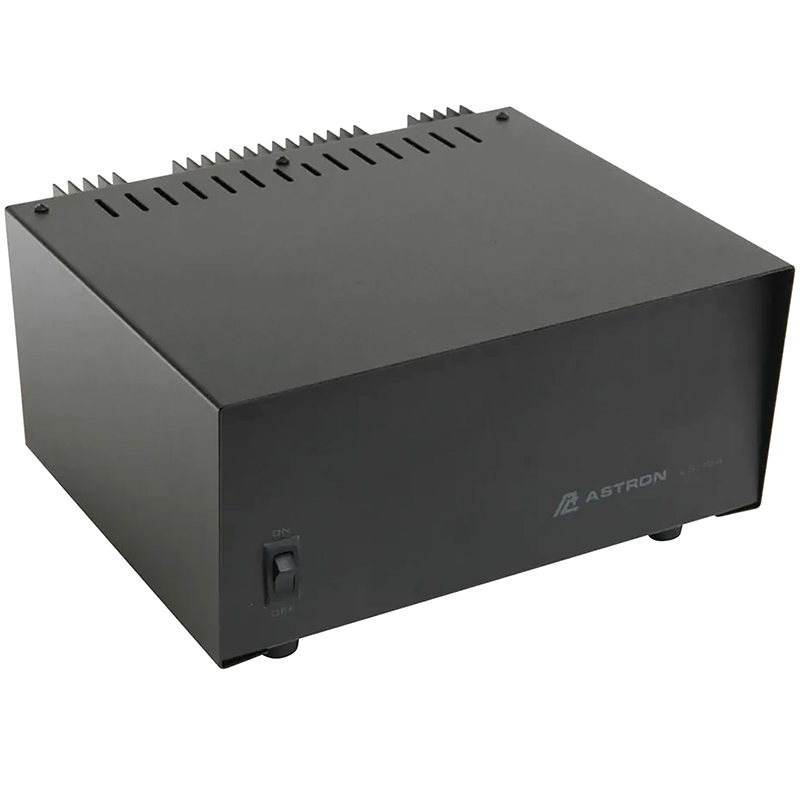

The LS-18A is a solid state electronically regulated power supply with fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse and less than 5mV ripple peak to peak (full load and low line).

This LS-18A power supply (EDMO# LS-18A) has a 28 VDC, 12 Amp output.

Features

Solid state electronically regulated
Fold back current limiting protects power supply from excessive current and continuous shorted output
Crowbar over voltage protection on all models
Maintain regulation and low ripple at low line input voltage
Three-conductor power cord
Heavy duty heat sink
RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)
LOAD REGULATION: 0.08% from 0 to Full Continuous Load
77% efficiency rating
