LT-100 DC to DC Power Converter | 100 W, 0-28VDC, 3.6 ADC

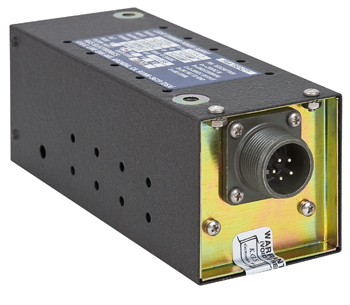

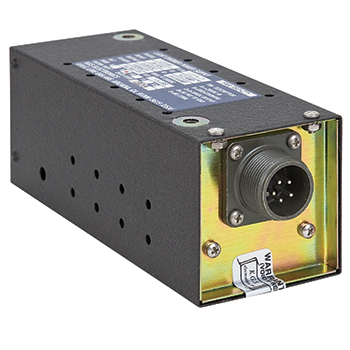

DC POWER CONVERTER/DC to regulated and controllable DC power converter, 50-100 watt. 28 Vdc to 0-28 Vdc, 3.6 ADC

K G S ELECTRONICS

EDMO#: LT-100

MFR#: LT-100

Description

The LT-100 is a pulse width-modulated DC to DC converter that provides regulated DC power. This converter transforms an unregulated 28 VDC to a regulated and adjustable DC voltage output via a remote control potentiometer.

The LT-100 is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-100is FAA TSO-C71 recognized for airborne applications.

Features

  • State of the art design for regulation and positive logic for output overvoltage protection.
  • Other LT-SERIES available in various output voltages and power ratings in the same package size.
  • The LT-100 is serviceable, small and lightweight.
  • Maximum output voltage is adjustable with an internal trim pot.
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202C and MIL-T-5422F class 1A.

Specifications

Weight:
1.5 lbs (683 grams)

Dimensions:
2.3 x 2.3 x 5.8 in (5.7 x 5.7 x 14.6 cm)

Max VA Rating:
100 W

Input Voltage:
20-40 VDC, 28 VDC (nominal)

Input Current:
5.8 ADC @ 20 VDC In
4.2 ADC @ 28 VDC In

Output Voltage:
0-28 VDC

Output Current:
3.6 ADC

Efficiency:
84%

Operating Temperature:
-55°C to 71°C

Altitude:
55,000 ft

Product Codes

Mfr Part No :

LT-100

ECCN :

3A225

NSN :

6210-01-326-0279

SCHEDULE B CODE :

8504.40.0018

TSO :

C71
