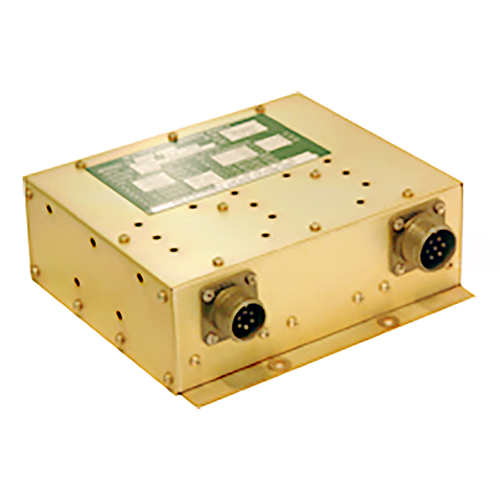

Regulated DC to DC Power Converter | 28 VDC Input, 0–5 VDC Output

K G S ELECTRONICS

Call For Pricing

Available to order

EDMO # LT-3103-4

MFR Part # LT-3103-4

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The LT-3103-4 is a pulse width-modulated DC to DC converter that provides regulated multiple output power. The converter transforms an unregulated 28 VDC to a regulated and adjustable DC output via a remote control potentiometer or voltage for voltage controlled models. The LT-3103-4 is primarily designed to control the light intensity of incandescent bulbs in lighting systems.

Features

State of the art design for regulation and positive logic for output over-voltage protection.
Maximum output voltage is adjustable with an internal trim pot.
Designed to meet various applicable portions MIL-STD 704 notice 3, MiL-STD-202 and MIL-T-5422F class IA.
The Model LT-3103-4 is serviceable, small and lightweight (42 watts per pound and 1.7 watts per cubic inch)

Specifications

Weight:

3.6 lbs (1634 grams)
Dimensions:

6.5 x 6.7 x 2.4 in (16.5 x 17 x 6 cm)
Input Voltage:

20 to 40 VDC, 28 VDC (Nominal)
Output Voltage:

0–28 VDC, adjustable with external 5000 Ω, 1/2 W rheostat
Max. Power Rating:

300 W
Input Current @ FIL:

20 VDC In: 17.8 ADC 28 VDC In: 12.8 ADC
Output Current:

11 ADC
Efficiency:

84%
Regulation:

2% for line, 2% load and 2.5% temperature; Common mode isolation = 40 db
Output Ripple:

≤ 25 mVp-p
Overload Protection:

Input and output current pulse when overload exceeds approximately 125% of rating
Overvoltage Protection:

Output voltage is limited to approximately 125% of rating even though remote control rheostat opens or internal failure occurs
Temperature:

-55ºC to 71ºC (sufficient cooling required @ 71ºC ambient)
Altitude:

55,000 ft
