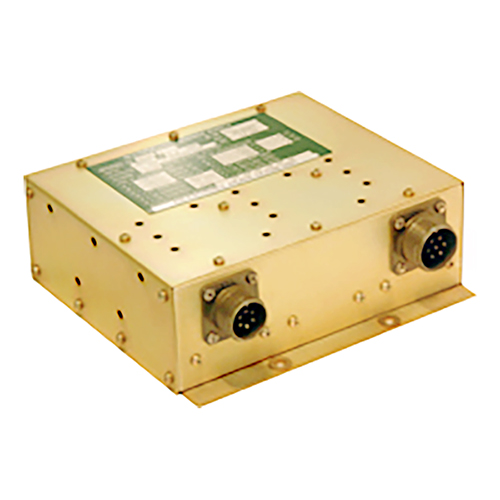

LT-3103 DC to DC Power Converter | Regulated, Multiple Output, 20–40 VDC Input, 0–28 VDC Output, 300 W

Product Description

The LT-3103 is a pulse width-modulated DC to DC converter that provides regulated multiple output power. The converter transforms an unregulated 28 VDC to a regulated and adjustable DC output via a remote control potentiometer or voltage for voltage controlled models. The Model LT-3103 is primarily designed to control the light intensity of incandescent bulbs in lighting systems.

Specifications

• Weight:
  3.6 lbs (1634 g)
• Size:
  6.5 x 6.7 x 2.4 in (16.5 x 17 x 6 cm)
• Input Voltage:
  20–40 VDC
• Input Current @ FIL:
  17.8 ADC @ 20 VDC; 12.8 ADC @ 28 VDC
• Output Voltage:
  0–28 VDC
• Output Current:
  11 ADC
• Max Power Rating:
  300 W
• Efficiency:
  84%
• Regulation:
  2% for line, 2% load and 2.5% temperature Common mode isolation: 40 db
• Output Ripple:
  ≤ 25 mVp-p
• Overload Protection:
  Input and output current pulse when overload exceeds approximately 125% of rating
• Overvoltage Protection:
  Output voltage is limited to approximately 125% of rating even though remote control rheostat opens or internal failure occurs
• Temperature Range:
  -55ºC to 71ºC
• Altitude:
  55,000 ft

Product Codes

• Mfr Part No
  LT-3103
