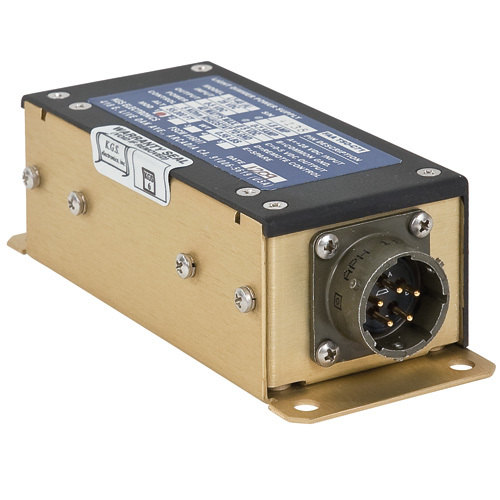

DC POWER CONVERTER/DC to regulated and controllable DC power converter, 50 watt. Input: 28 VDC, Output: 100 W, 0-28 VDC, 3.6 amp. MS3106A14S-5S plug. TSO'd

K G S ELECTRONICS

Call For Pricing

Available to order

EDMO # LT-45D

MFR Part # LT-45(D)

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The LT-45D is a pulse width-modulated DC to DC converter that provides regulated output power. This converter transforms an unregulated 28 VDC to regulated output power. The output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground. Fixed output and voltage control models are also available.

The LT-45D is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-45D are qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters.

Features

State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology).
The LT-45D is serviceable, small and lightweight.
Maximum output voltage is adjustable with an internal trim pot.
Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A.
