LT-50 DC to DC Power Converter | 40 W, 0-5 VDC, 7.5 A

DC POWER CONVERTER/DC to regulated and controllable DC power converter, 50 watt

K G S ELECTRONICS

Call For Pricing

Available to order

EDMO # LT-50

MFR Part # LT-50

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

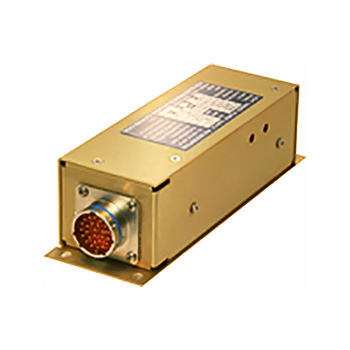

The LT-50 is primarily designed to power 5V incandescent lamp loads for airborne/ground instruments, navigation and other critical electronic systems.

The LT-50 converts 28 VDC input to 0-5 VDC output with up to 7.5 A continuous output power, 37.5 W total power.

Control circuitry design includes use of a popular PWM controller for voltage regulation and output current limit. Protection circuitry design includes low input voltage shutdown, softstart, high input voltage shutdown, output overvoltage limiting and output short circuit current limiting.

Features

Converts 28 VDC input to adjustable 0–5 VDC output with up to 7.5A continuous power (37.5W total)
Optimized for powering 5V incandescent lamp loads in avionics and critical electronic systems
PWM control topology ensures precise voltage regulation and built-in output current limiting
Includes comprehensive protection: soft-start, low/high input voltage shutdown, output overvoltage limiting, and short circuit protection

Specifications

Weight:

1.1 lbs (499 grams)
Dimensions:

2.00 x 2.26 x 6.88 in (50.80 x 57.40 x 174.75 mm)
Input Voltage:

28 VDC
Input Current:

1.8 A (typical) @ 7.5 A full load, 2.2 A (max) @ 8.2 A full load, 0.10 A (max) @ no load
Output Voltage:

0-5 VDC
Output Current:

0-7.5 A (continuous), 8.2 A (max) @ 5 Vdc
Power:

40 W (max)
Efficiency:

83% (typical)
Operating Temperature:

-55°C to 71°C
Altitude:

55,000FT
