Instrument Light Wedge | 2-1/4 in, 5V, Lefthand Cutout, PMA

Product Description

Nulite aircraft instrument lighting creates the appearance of an internal lighting kit with less install time and at a fraction of the cost. Light wedges are installed between the instrument and the panel, effectively reducing glare and hotspots by concentrating 60% of its light to the upper half of the instrument. Nulite light wedges come in different sizes and cutout arrangements to fit most instruments and will work with existing dimming systems. These can be installed in minutes and are PMA approved.

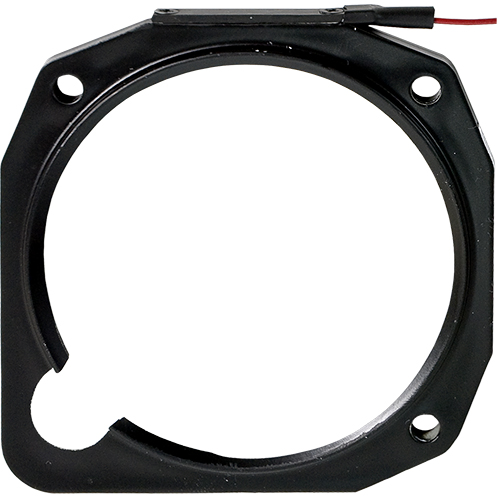

This light wedge (EDMO# LW2005A) fits over 2-1/4 inch standard instruments, left hand cutout, and 5-volt operation.

Specifications

• Mounting Hole Size:
  2-1/4 in
• Operating voltage:
  5V
• Cut out:
  Left cutout

Product Codes

• Mfr Part No
  LW2005A
• ECCN
  EAR99
• PMA
  PQ876SW
• SCHEDULE B CODE
  9014.20.8040
