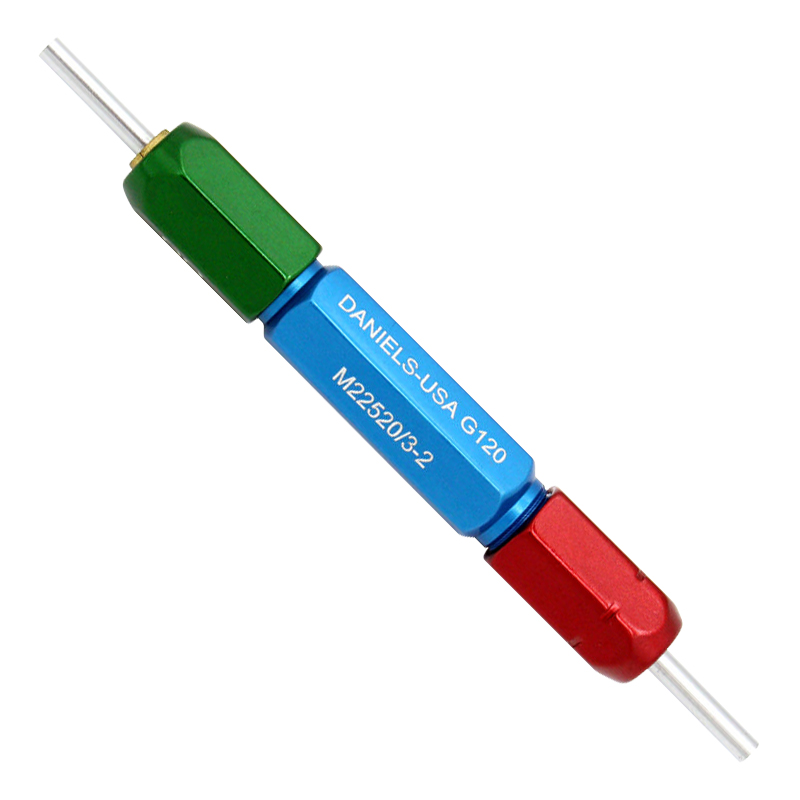

G120 GO/NO-GO Gage | GO 0.0960, NO-GO 0.1000

Product Description

Daniels Manufacturing Corporation's crimp tools require consistent verification to ensure the precise quality of terminations is maintained. DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.

This go/no-go gauge (EDMO# M22520/3-2) is used with the GS100-1 Circular Indent Crimp Tool and has a gage range of 0.0960 (GO) to 0.1000 (NO-GO).

Specifications

• Weight:
  0.131 lb
• Length:
  2.50 in, approx. (handle)
• Tolerance:
  GO: 0.0960 ± 0.0001 NO-GO: 0.1000 ± 0.0001

Product Codes

• Mfr Part No
  G120
• ECCN
  EAR99
• SCHEDULE B CODE
  8203.20.6060
