M-Series Mini Ground Power Unit | 27A, 28V, 3-pin Oval Plug

Select Voltage

WHITE LIGHTNING GPU

Call For Pricing

In stock

EDMO # M2827

MFR Part # M2827

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M-Series Mini-GPUs achieve a remarkable 88% efficiency to provide up to 27-amps of power at 28-volts DC, perfectly replicating the in-flight electrical environment. Its cool running, switching-mode power modules provide massive amounts of stable, noise-free power, compatible with input voltages from all over the world. It will continuously power the most delicate avionics and airframe systems without risk of depleting the ship’s battery or causing costly damage.

The Model M2827 provides 28-volt DC, 27 Amp power for:

Avionics demonstration and testing
Database and firmware updates
Flight planning and cockpit procedures training
Troubleshooting & maintenance
Powered pre-flight inspections and battery top-off

The Model M2827 comes with a 6’ airframe output cable with red SB50 connector at one end (protects from damage due to accidental voltage mismatch) and a standard 3-pin oval AN2551 aircraft plug.

Features

Output: 28 VDC, 27 Amps maximum continuous
Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
Switching Mode Output Module with automatic self-protection for short circuit / overload / over voltage / over temperature

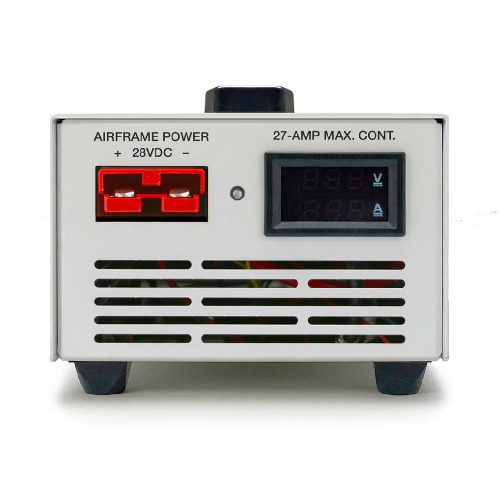

Digital output meters for both voltage and amperes

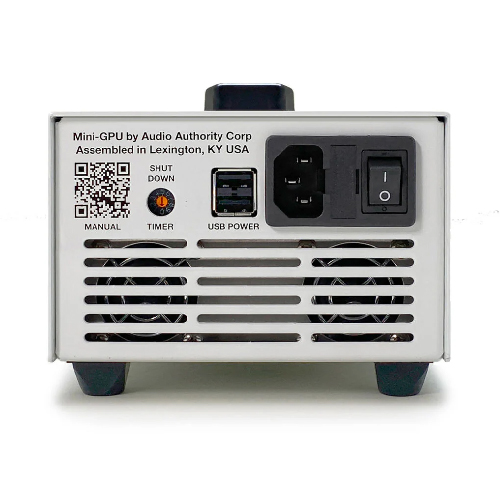

Includes detachable input and output cables
Six-feet airframe output cable with red SB50 and 3-pin AN2551 plug signify 24/28V operation only and locks out yellow 12V plugs to protect from voltage mismatch
Compact, lightweight design utilizes highly efficient digital switching-mode power modules for voltage stability and long-term reliability

Specifications

Output:

28 VDC, 27 Amps maximum continuous Input: Universal, world-wide, 85-264 VAC, 47-63 Hz Weight: 9 lb (without cables) Dimensions: 16 x 10 x 6 in
