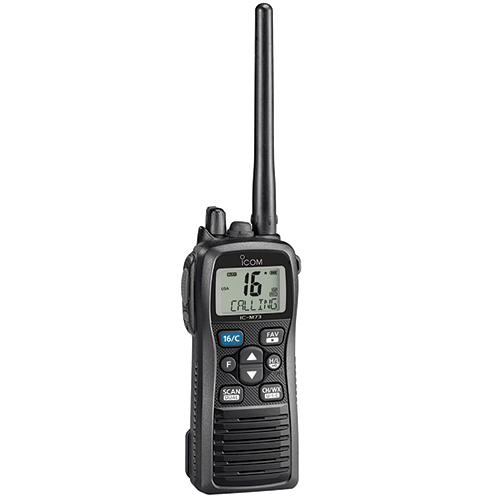

M73 VHF Marine Handheld Radio | 156–165 MHz, 6 W, Submersible

Product Description

The M73 is an ergonomic, user-friendly, durable, and submersible VHF transceiver. The M73 has been tested for submersions in up to 1.5 meters of water for thirty minutes. This device is equipped with a wide viewing angle, high-intensity LCD screen that has bright, easy-to-read characters and a bridge-tied load amplifier that doubles the audio output of the internal speaker.

Specifications

• Frequency Range:
  Tx 156.025–157.425MHz Rx 156.050–163.275MHz
• Usable channel groups:
  INT, USA, CAN, WX channels
• Type of emission:
  16K0G3E (FM)
• Current drain (at 7.4V DC):
  Tx (at 6W output) 1.5A typical Rx (Max. audio (Int SP/Ext SP) 450mA/250mA
• Operating temperature range:
  –20°C to 60°C (–4°F to 140°F)
• Antenna Impedance:
  50 Ω (STUD)
• Dimensions:
  52.5 x 125 x 30 mm
• Weight (approx.):
  320g; 11.3oz (With BP-245N, FA-S64V, MB-103)
• Transmitter
• Output power (Hi/Low):
  6W/3W/1W
• Max. frequency deviation:
  ±5.0 kHz
• Frequency error :
  ±10ppm
• Audio harmonic distortion:
  Less than 10% (at 60% dev.)
• Spurious emissions:
  –68 dBc
• Adjacent channel power:
  70 dB
• Audio harmonic distortion:
  Less than 10% (at 60% dev.)
• Residual modulation:
  40 dB
• Receiver
• Sensitivity:
  0.22 μV, typical (at 12dB SINAD)
• Squelch sensitivity:
  0.35 µV, typical (at threshold)
• Adjacent Channel Selectivity:
  70 dB typical
• Spurious response:
  70 dB typical
• Intermodulation:
  70 dB typical
• Hum and noise ratio:
  40 dB typical
• Audio output power:
  Internal speaker 700 mW typ. (at 10% distortion, 8Ω load) External speaker 350 mW typ. (at 10% distortion, 8Ω load)

Product Codes

• Mfr Part No
  M73 01
