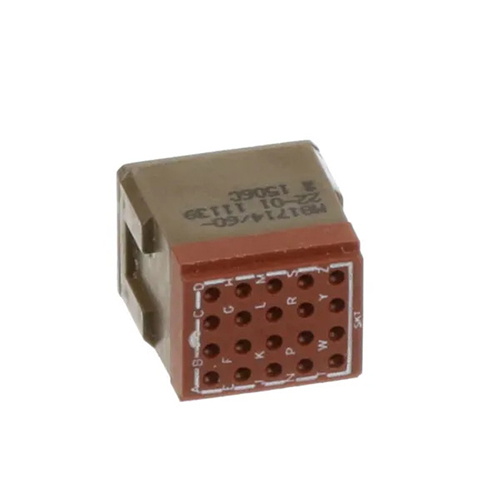

Socket Junction Module | Single Bus, Size 22 Contacts

Product Description

The DEUTSCH CTJ Series common termination system from TE Connectivity (TE) is a system of wires and components that are interconnected to one another by the use of a standard AS39029 socket contact only. This eliminates the need for pin contacts which are located in the mating components. Bussed cavities use our single-pin bus bar design. There are multiple design options available to customize the modules, junctions, splices and rails available in Mil Spec-approved AS81714 Series II and non-qualified proprietary designs.

This socket junction module (EDMO# M81714/601) is a single bussed feedback module with 20 size 22 contacts rated to Mil standard to withstand fluid immersion to MS55.

Specifications

• Dielectric Withstanding Voltage:
  At Sea Level: 1500 V AC At 110,000 Ft: 200 V AC
• Insulation Resistance:
  5000 MΩ min. at 25°C
• Operating Temperature:
  -65°C to +200°C
• Vibration:
  Maintains continuity to minimize mechanical or physical damage during or after vibration levels stated in tested specifications
• Corrosion:
  48 hours of salt spray
• Fluid Resistance:
  MIL-PRF-5606: Hydraulic fluid MIL-DTL-83133: JP-8 aviation fuel MIL-PRF-7808: Lubricating oil MIL-PRF-23699: Lubricating oil MIL-A-8243: Deicing/defrosting fluid MIL-C-25769: Aircraft cleaning compound MIL-PRF-87937: Aircraft cleaning compound MIL-G-3056: Gasoline
• Housing:
  Composite Bus
• Bar/Pins:
  Copper alloy, plated gold Pin
• Contacts:
  Gold over copper
• Sealing Grommet:
  Elastomer, fluid resistant and environmentally sealed

Product Codes

• Mfr Part No
  M81714/60-22-01
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.8085
