M81714/67 Series II Socket Junction Module Mounting Track | 2 position

Product Description

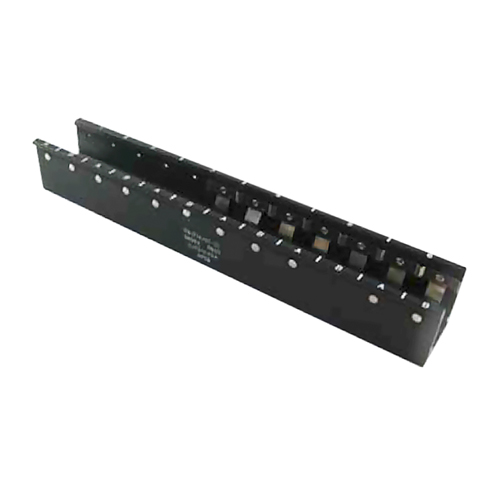

M81714/67 series II socket junction module mounting tracks provide anywhere from 2 to 20 mounting positions. These mounting tracks are available in aluminum or lightweight, glass-filled polyethermide composite construction, for increased resistance to chemicals. Both mounting tracks, aluminum and composite, are interchangeable with each other.

This socket junction module track (EDMO# M81714/672) is constructed of aluminum and has two mounting positions.

Specifications

• Dimensions:
  1.036 x 0.518 in
• Mounting Positions:
  2
• Temperature:
  -65°C to 200°C (aluminum) -65°C to 175°C (composite)
• Correction:
  No exposure of base material after 48 hours of salt spray (aluminum)
• Magnetic Permeability:
  2.0 MU (max)
• Vibration and Shock:
  Per MIL-T-81714 Paragraph 3.5.5 and 3.5.8
• Materials:
  Rail: available in black anodized, aluminum alloy or glass-filled polythermide Spring clips: stainless steel (aluminum vesion) Rivets: stainless steel (aluminum version)

Product Codes

• Mfr Part No
  M81714/67-02
