MD11 Carburetor Air Temperature Indicator | 28V

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD11-4

MFR Part # MD11-4

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

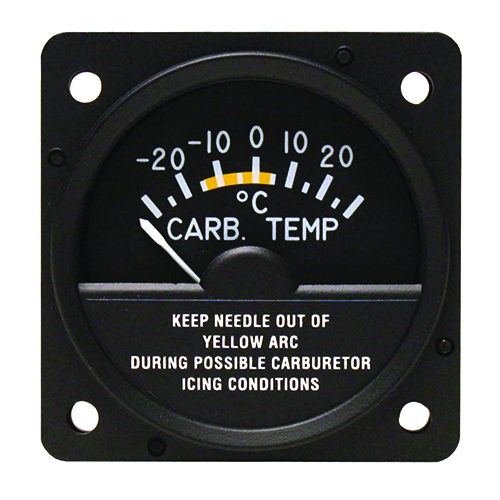

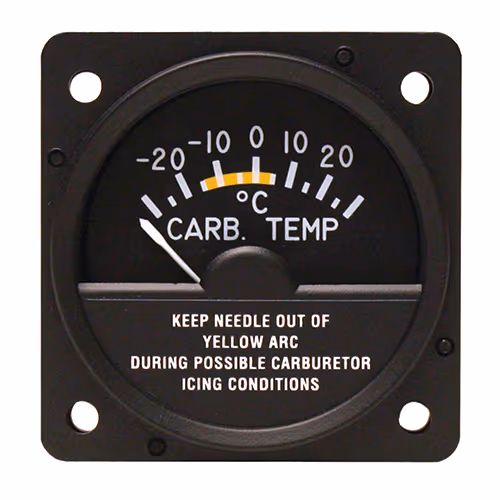

The MD11 Series Carburetor Air Temperature Indicator senses the internal carburetor temperature when used with the B-5 Probe that is FAA approved and STC'd. The probe is designed to be installed at the throttle valve, a critical icing point in fuel induction systems. The indicator has a reading within 1ºC for maximum safety and engine efficiency.

Version (EDMO# MD11-4) is 28V.

Features

Detects potential carburetor icing
Reduces spark plug fouling
Extends engine life
Helps attain maximum fuel economy, range and power
Probe fits pre-tapped hole in Marvel-Schebler and Bendix carburetors
Quality connector included
Supplemental Type Certification FAA PMA approved

Specifications

Weight:

0.3 lbs
Dimensions:

2.4 x 2.5 x 2.7 inches
Power Input:

28 VDC Operating Temperature: –40°C to +87°C (–40°F to +190°F) Indicating Temperature: –30°C to +30°C (–22°F to +86°F) Altitude: –1,000 to +40,000 feet Humidity: 0 to 90% at 25°C Vibration: .02 in. dbl. ampl., 1.5g @ 5 to 50 Hz Certification: FAA PMA approved Mounting: Front or rear panel Case Material: Flame-retardant polycarbonate Connector: 3-pin AN type male (MS3102A–14S–07P) Mating Connector: 3-pin AN type female (MS3106A14S–7S with MS3057–6A)
