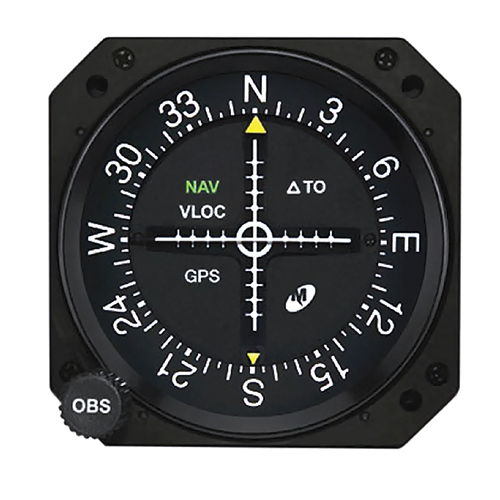

MD200 Course Deviation Indicator | 12-32VDC, 3in, Lighted, Glidescope

COURSE DEVIATION INDICATOR/14-28V, 3, lighted, glidescope.

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

In stock

EDMO # MD200-706

MFR Part # MD200-706

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MD200 Series Course Deviation Indicator is designed to work with VHF and GPS navigational equipment to provide OMNI (VOR), GPS, localizer (LOC), and glideslope information. The MD200 is designed to accept DC signals from Left-Right and Up/Down pointer deviation and Valid/Invalid (flag) status from a remote mounted VOR converter. It also provides annunciations for NAV, VLOC, and GPS indication of the incoming source or mode and a TO or FR (from) annunciation to indicate direction of the ground signal or course waypoint from the aircraft.

Features

Fits standard 3-1/8 inch panel cutout
All metal construction with stainless steel ball bearings in critical areas
Deviation bars/pointers hide from view when invalid
LED annunciations for NAV, GPS, VLOC and To/From indication
True OBS course resolver output
Compatible with WAAS GPS receivers
Pin-for-pin replacement for all legacy MD200 models
Optional course datum synchro output (MD200-707)
High-quality D-Sub connectors included with gold-plated pins
FAA TSO and ETSO certified for use with all GPS and VOR systems

Specifications

Weight:

1.3 lbs
Voltage Input:

12 – 32 VDC Current Input: 0.2 A (max) Lighting: 5V, 14V, or 28V automatic photocell dimming of annunciators Cutout: Standard 3 1/8” round Temperature: –55°C to +70°C (–67°F to +158°F) Altitude: 0 to 55,000 ft Humidity: 95% non-condensing Vibration: DO-160B, Cat. M and N Certification: FAA TSO certified to C34e, C36e, C40c EASA ETSO certified to C34e, C36e, 2C40c RTCA DO-1606 qualified Mounting: Panel, rear mount Connector(s): 25-pin male D-Subminiature 9-pin male D-Subminiature Mating Connector(s): 25-pin female D-Subminiature (included)
