MD23 Digital Annunciation Control Unit | 2-inch, for True Blue Power Gen5 Li-Ion Batteries

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD23-104

MFR Part # MD23-104

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

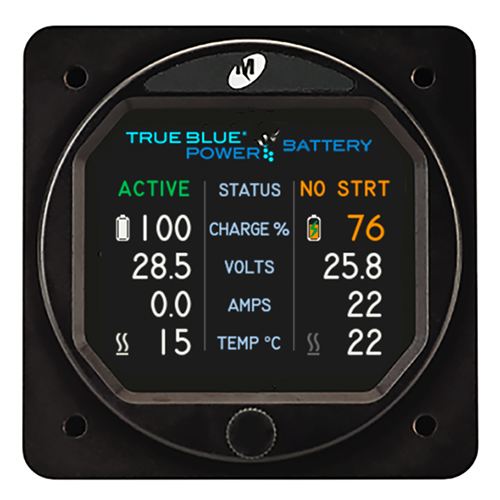

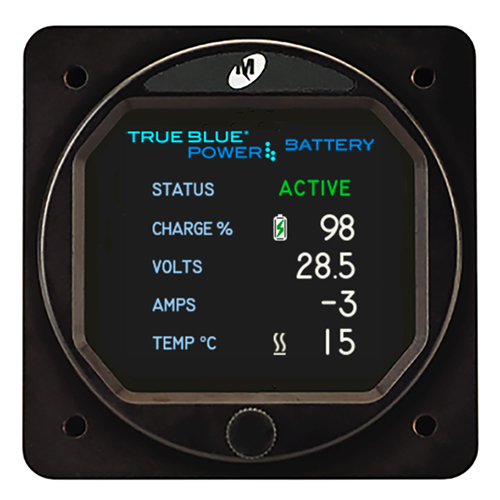

The MD23 battery monitor is specifically designed for the True Blue Power Gen5 Advanced Lithium-ion batteries. This unit will display performance and status data from either one or two Gen5 batteries. The MD23 series battery monitor is an FAA and EASA TSO-approved instrument that brings a highly capable and modern addition to the cockpit display. This instrument fits standard 2-1/4 inch mounting holes.

Features

Monitors and displays True Blue Power® Gen5 lithium-ion battery parameters
Features smooth, high-resolution graphics

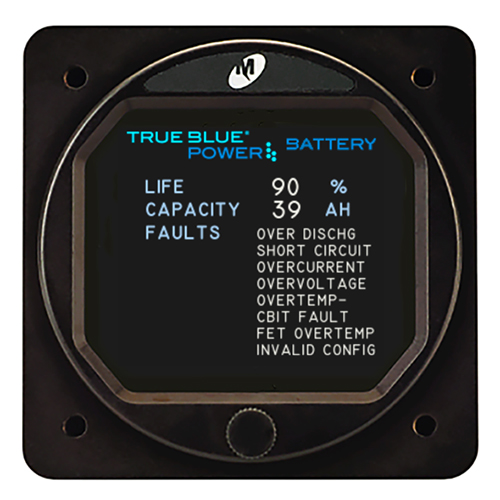

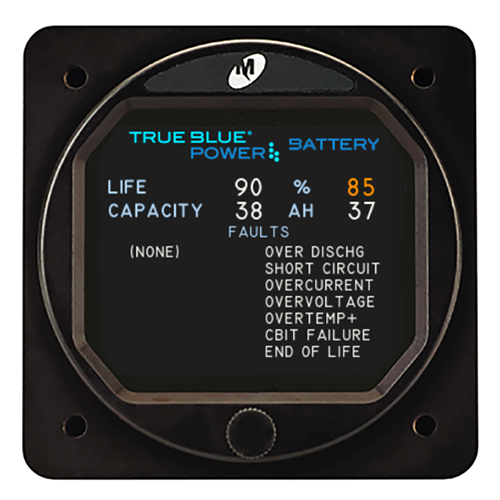

Provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data

Specifications

Weight:

0.4 lbs (0.17 kg)
Dimensions:

2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
Power Input:

10-32 VDC 0.14 A @ 28 VDC; 4 watts nominal
Data Input:

ARINC 429
Data Output:

ARINC 429
Battery:

Rechargeable coin cell (memory only)
Mounting:

Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
Mating Connector:

P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
Certification:

FAA TSO certified to C2d, C106, C113b RTCA DO-160G qualified RTCA DO-178C qualified, Design Assurance Level (DAL) A
Rights:

U.S. Patent 11,048,389
