MD23 Digital GPS Clock | 2-inch

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD23-190

MFR Part # MD23-190

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

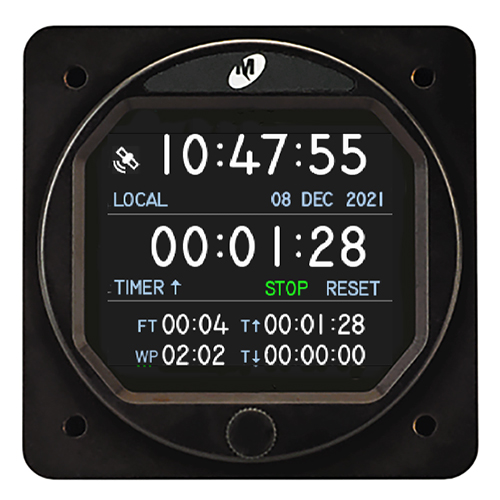

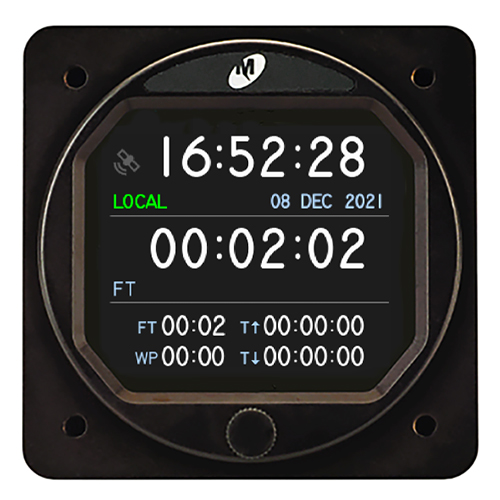

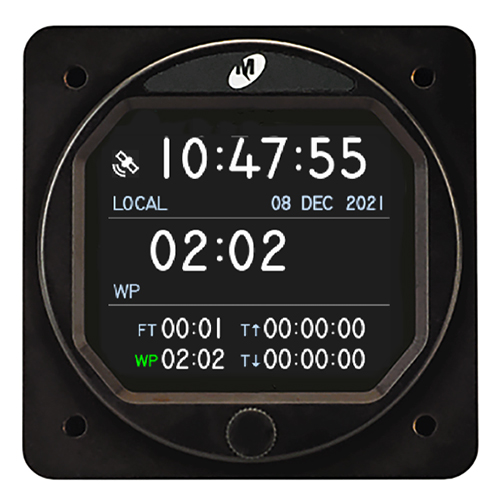

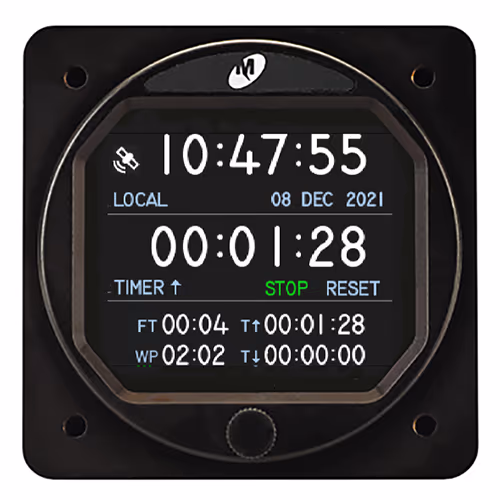

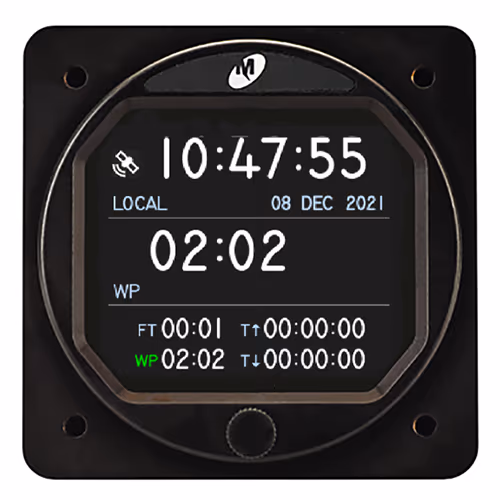

The MD23 digital multi-function clock features OTC time, local time and multiple timers. This digital clock receives ARINC 429 signal to synchronize with a GPS source for accurate estimated time to the next waypoint. The unit features high resolution graphics and can send accurate time to other external equipment.

Features

Displays nine functions: local time, utc/zulu time, flight timer, countdown timer, stopwatch, date, time to waypoint, hobbs, run timer
Receives ARINC 429 input to sync with a GPS source
Retains accuracy — even when GPS input is unavailable
Sends time to external equipment and provides Estimated Time (ET) to the next waypoint
Clock settings include 12- or 24-hour mode and seconds ON or OFF
Standard 2-inch size
Compact and lightweight — weighing only 0.4 lb
Simple user interface with a single, push-and-turn control knob
Daylight readable LCD with high-resolution graphics
Manual or automatic lighting control from external lighting controller or built-in photocell
Night Vision Integrated System compatible (available)
Field upgradeable software using its standard USB-A port
TSO-certified (Design Assurance Level A)

Specifications

Weight:

0.4 lb (0.17 kg)
Dimensions:

2.43 x 2.43 x 1.0 in (61.7 x 61.7 x 25.4 mm)
Input Voltage:

10V – 32V, 0.14A @ 28 VDC (4 watts nominal)
Instrument Size:

Standard 2-inch (2-1/4 in)
Data Input:

ARINC 429: low or high speed, label 150, 252
Data Output:

ARINC 429: high speed, label 150
Lighting:

5, 14, 28 VDC external controller or internal photocell for automatic dimming
Battery:

rechargeable coin cell (memory only)
Mounting:

rear panel mounted, (4) #6-32 screws, 2.25"" round bezel
Mating Connector:

MCIA P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
Certification:

FAA/EASA TSO certified to C113b RTCA DO-160G qualified RTCA DO-178C qualified, Design Assurance Level (DAL) A
