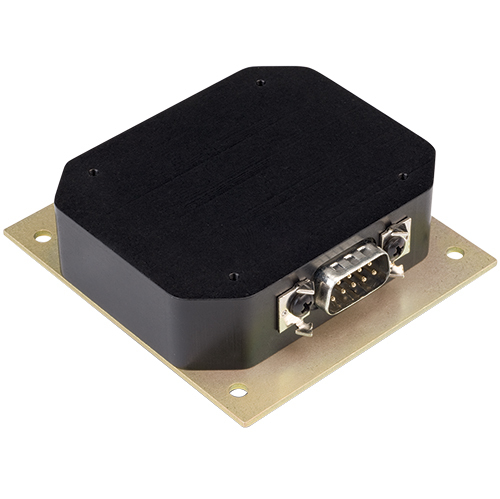

MD32 Magnetometer

MD32 Magnetometer

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing
Available to order
EDMO # MD32
MFR Part # 6420032-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MD32 Magnetometer is designed specifically for the MD302 Standby Attitude Module — SAM®. This FAA approved device delivers independent heading and reference without orientation limitations or the need to for special installation hardware. The MD32 has a compact footprint with flexible mounting while offering convenient calibration from the cockpit for easy and economical installation.

Features

  • Provides independent heading reference
  • No special installation hardware
  • No orientation limitations
  • Compact size — only 2.75 x 3 x 0.81 in
  • Unique mounting flexibility
  • Convenient cockpit calibration

Specifications

  • Weight:
    0.19 lb
  • Dimensions:
    2.75 x 3 x 0.81 in
  • Power Input:
    7 VDC – 32 VDC @ 0.56A, maximum
  • Output:
    ARINC 429 custom format
  • Temperature:
    -55°C to 70°C (-67°F to 158°F)
  • Altitude:
    55,000 ft
  • Certification:
    FAA TSO certified to C6e RTCA DO-160G RTCA DO-178C Level A

Related Products

Product Codes

  • Mfr Part No
    6420032-1
  • ECCN
    9A991
  • SCHEDULE B CODE
    8803.30.0010
  • TSO
    TSO C6e
