MD41 Series Helicopter TAWS Annunciation Control Unit | 28V, Horizontal, 5V Lighting

HTAWS (Helicopter Terrain Awareness Warning System) ANNUNCIATION CONTROL UNIT/28V, 5V Lighting, Horizontal. For use with Garmin 430W/530W.

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD41-10485

MFR Part # MD41-1048

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

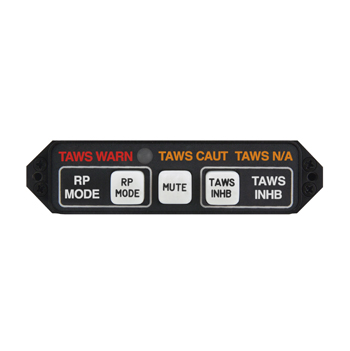

The MD41 Helicopter TAWS Annunciation Control Unit is a three-button horizontal 28 volt TAWS for Garmin 430W/530W. Designed to place annunciation and mode selection for the Terrain Awareness Warning System (TAWS) within the pilots direct field-of-view, these annunciators provide tactile feedback to the pilot through internally-lighted push buttons.

Version (EDMO# MD41-10485) is a 28V unit with horizontal orientation for helicopter applications. 5V lighting.

Features

Compact, self-contained Annunciation Control Unit
Provides annunciation and mode selection for HTAWS
Designed to work with Garmin 4XXW/5XXW series systems
0.80”H x 3.25”W x 3.20”D
Reduces installations costs:Single cutout
Panel punches available
Easy-to-wire D-subminiature connecter
10,000 hour lamp with automatic photocell dimming and proven daylight-readability
More than 25,000 MD41s currently in service
Qualified to TSO-C151
Meets RTCA DO-160D environmental specifications (certified to 55,000 feet)
Quality Mil-Spec connector included

Specifications

Weight:

0.26 lbs. Dimensions: 0.80 x 3.25 x 3.20 in (not including connector or mate)
Orientation:

Horizontal Power Input: 28 VDC Lighting Input: 5 VDC Mating Connector: Positronic RD25F10JVL0 or equivalent (Mid-Continent P/N 7014517) Instrument Panel Mounting: Rear mount Qualification: FAA TSO-C151 Environmental Qualification: RTCA DO-160D Power Requirement: 0.15 A max
