MD41 Series TAWS/EGPSWS Annunciation Control Unit | 28V, Horizontal, Honeywell KGP 560/860

MD41 Series TAWS/EGPSWS Annunciation Control Unit | 28V, Horizontal, Honeywell KGP 560/860

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing
Available to order
EDMO # MD41-1208
MFR Part # MD41-1208
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

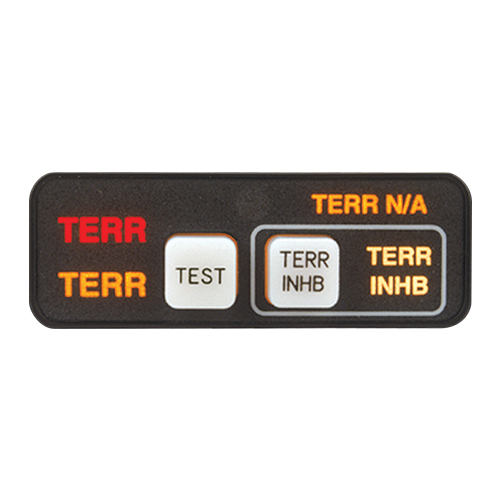

The MD41 TAWS Annunciation Control Unit is a two-button horizontal 28 volt TAWS for Honeywell KGP 560/860. Designed to place annunciation and mode selection for the Terrain Awareness Warning System (TAWS) within the pilots direct field-of-view, these annunciators provide tactile feedback to the pilot through internally-lighted push buttons.

Version (EDMO# MD41-1208) is a 28V unit with horizontal orientation compatible with Honeywell KGP 560/860.

Features

  • Control unit provides annunciation and mode selection for TAWS (Terrain Awareness Warning System) and EGPWS (Enhanced Ground Proximity Warning Systems)
  • Presents primary or secondary visual alert of TAWS within the pilot’s direct field of view
  • Single cutout
  • Panel punches available
  • Easy-to-wire D-subminiature connector
  • Proven daylight-readable annunciations with automatic photocell dimming
  • Internally lighted push-buttons provide firm tactile feedback to the pilot
  • Remote annunciator test capability
  • Certified to TSO C151a
  • Meets RTCA DO-160D environmental specifications (certified to 55,000 feet)
  • Quality Mil-Spec connector included

Specifications

  • Weight:
    0.50 lb
  • Dimensions:
    2.75 x 3.22 x 0.80 in.
  • Temperature:
    -55ºC to +70ºC
  • Humidity:
    95% non-condensing
  • Altitude:
    55,000 ft

Related Products

Product Codes

  • Mfr Part No
    MD41-1208
  • ECCN
    9A991
  • SCHEDULE B CODE
    8536509030
  • TSO
    C151a
