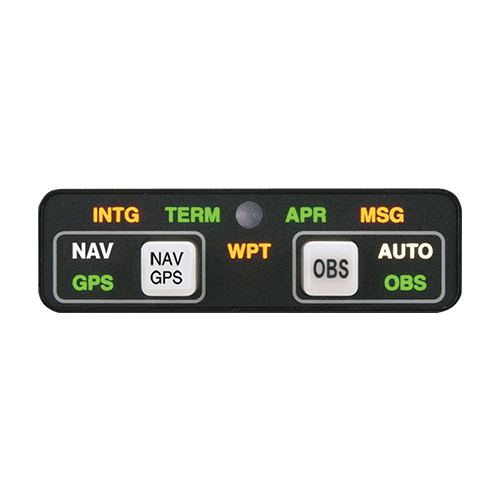

MD41 Series Annunciation Control Unit | 28V, Horizontal, Remote Relay, Garmin

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD41-1408A

MFR Part # MD41-1408A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MD41 is a compact, self-contained GPS Annunciation and Control unit. It combines all the necessary functions required to interface the Garmin GPS 400/500, GNC 420/520 and GNS 430/530 approach certified GPS receivers with the MD41-244/248 remote mounted relay transfer system. In addition, the MD41 contains several GPS status annunciations used to indicate modes selected by the front panel switches and various inputs from the GPS receiver.

Version (EDMO# MD41-1408A) is a 28V unit with horizontal orientation compatible with the Garmin GPS 400/500, GNC 420/520 and GNS 430/530 approach certified GPS receivers with the MD41-244/248 remote mounted relay transfer system. Includes remote relay.

Features

Compact, self-contained GPS Annunciation unit
More than 25,000 MD41s currently in service
10,000 hour lamp with automatic photocell dimming and proven daylight-readability
28 Volt
Horizontal configuration
Reduces installation costs:Single cutout
Panel punches available
Easy-to-wire D-subminiature connector
Includes NAV/GPS switching push button for the 400W and 500W series
Certified TSO C129a
Meets RTCA DO-160C environmental specs (certified to 55,000 feet)
Quality Mil-Spec connector included
