MD41 Series GPS Annunciation Control Unit | 28V, Horizontal Garmin GNS 430/530

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD41-1468A

MFR Part # MD41-1468A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

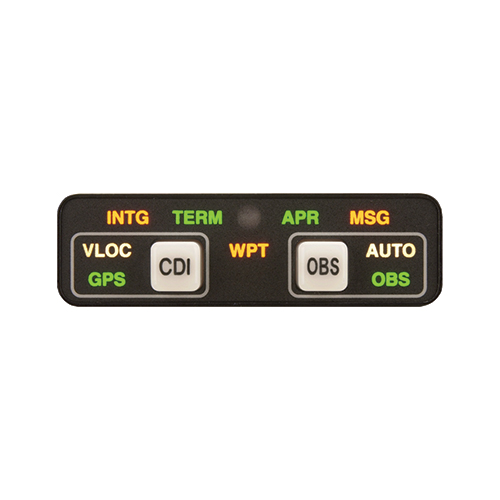

The MD41 is a compact, self-contained GPS Annunciation and Control unit. It meets all requirements for external (remote) mode selection and status annunciation for the Garmin GNS 430/530 VHF Communication and Navigation Management System. Dual 20,000 hour lamps are used for all annunciations, internally lighted selection switches and automatic photocell dimming. An external annunciation dimming adjustment is provided for balancing low level light conditions.

Version (EDMO# MD41-1468A) is a 28V unit with horizontal orientation compatible with Garmin GNS-430/530 and Avidyne IFD-440/540 models.

Features

Compatible with Garmin GNS 430W/530W WAAS Receivers
Compact, self-contained GPS Annunciation unit
More than 25,000 MD41s currently in service
10,000 hour lamp with automatic photocell dimming and proven daylight-readability
28 Volt
Horizontal configuration
Reduces installation costs:Single cutout
Panel punches available
Easy-to-wire D-subminiature connector
Internally lighted CDI and OBS push-buttons that provide firm tactile feedback to the pilot
Certified TSO C129a
Meets RTCA DO-160C environmental specs (certified to 55,000 feet)
Quality Mil-Spec connector included
