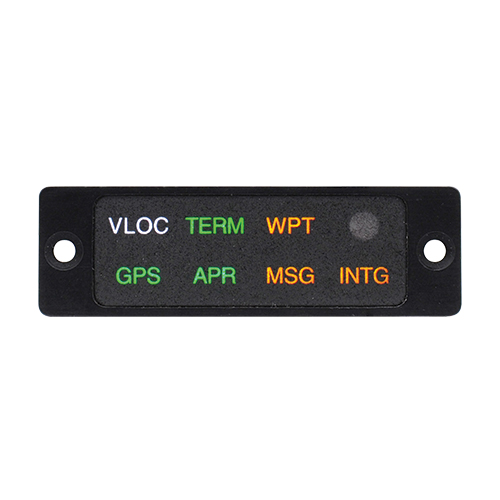

MD41 Series Annunciation Control Unit | 28V, Horizontal, Garmin

MD41 Series Annunciation Control Unit | 28V, Horizontal, Garmin

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing
Available to order
EDMO # MD41-1488W
MFR Part # MD41-1488W
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MD41 is a compact, self-contained GPS Annunciation unit. This unit displays status annunciation received from the compatible GNS-430/530, GTN 650/750 and Avidyne IFD540 GPS systems.

Version (EDMO# MD41-1488W) is a 28V unit with horizontal orientation with no buttons and compatible with Garmin GNS-430/530, GTN 650/750 and Avidyne IFD540 models.

Features

  • Compatible with Garmin GNS-430/530, GTN 650/750 and Avidyne IFD540
  • Compact, self-contained GPS Annunciation unit
  • More than 25,000 MD41s currently in service
  • 10,000 hour lamp with automatic photocell dimming and proven daylight-readability
  • 28 Volt
  • Horizontal configuration
  • Reduces installation costs:Single cutout
  • Panel punches available
  • Easy-to-wire D-subminiature connector*
  • Certified TSO C129a
  • Meets RTCA DO-160C environmental specs (certified to 55,000 feet)
  • Quality Mil-Spec connector included

Specifications

  • Weight:
    0.50 lb
  • Dimensions:
    2.45 x 2.60 x 0.75 in.
  • Temperature:
    -55ºC to +70ºC
  • Humidity:
    95% non-condensing
  • Altitude:
    55,000 ft

Related Products

Product Codes

  • Mfr Part No
    MD41-1488W
  • ECCN
    9A991
  • SCHEDULE B CODE
    8536.50.9030
  • TSO
    C129
