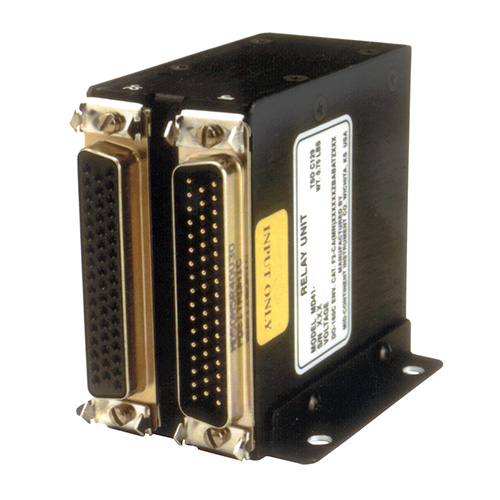

MD41 Remote Transfer Relay | 14V, 24 Pole

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

Available to order

EDMO # MD41-244

MFR Part # MD41-244

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MD41-244/248 is a bulkhead mounted remote transfer relay unit specifically designed for switching a CDI or HSI Indicator between two aircraft radio navigation systems. The remote switching unit is designed to be used with the companion MD41-1XXX series Annunciation Control Unit (ACU). This pertains to GPS systems where the user desires to share a common CDI or HSI between an existing NAV system and a GPS system.

Version (EMDO# MD41-244) is a 14V remote mounted transfer relay.

Features

24 pole
8 relay pairs with 3 poles per pair
Relay pairs activated individually by voltage, ground keying, or as a group by ground keying
Interlocking of transfer relays
ILS override automatically switches to Nav mode when tuned to ILS frequency
Adjustable dimming regulator
Gold plated contacts
Nitrogen filled
