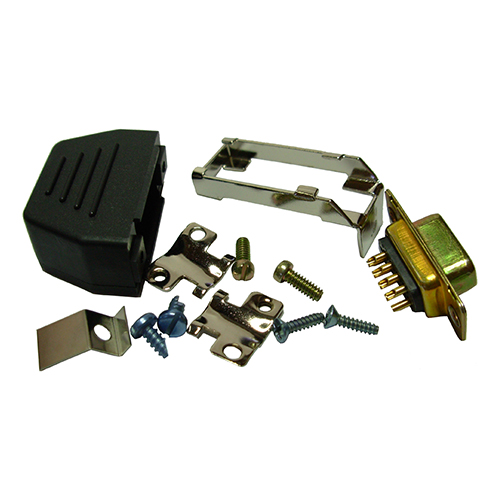

9 Pin Female Connector Assembly

9 Pin Female Connector Assembly

DAVTRON

Call For Pricing
Available to order
EDMO # MD9F20JVL0
MFR Part # CONN-MD9F20JVL0
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

MD9F20JVL0 is a 9 pin female connector assembly

Features

  • D-sub 9 pin mating connector
  • Nylon resin, UL 94V-0 black color
  • Precision machined high tensile phosphor bronze
  • Gold flash over nickel plate
  • Lock lever, steel, nickel plate
  • Cable clamps, steel, nickel plate.

Specifications

  • Insulator:
    Nylon resin, UL 94V-0 Black Color
  • Contacts:
    Precision machined high tensile phosphor bronze, gold flash nickel plate
  • Shells:
    Steel, zinc plate with chromate seal
  • Hood:
    Glass filled nylon, 94V-0, black
  • Lock Lever:
    Steel, nickel plate.
  • Cable Clamps:
    Steel, nickel plate.
  • Cable Clamp Screws:
    Brass, zinc plate with Chromate Seal
  • Screws:
    Steel, zinc plate with chromate seal
  • Contact Current Rating:
    7.5 amps nominal.
  • Initial Contact Resistance:
    0.008 ohms maximum
  • Insulator Resistance:
    5 G ohms.
  • Working Temperature:
    -55 C to + 125 C

Related Products

Product Codes

  • Mfr Part No
    CONN-MD9F20JVL0
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4050
