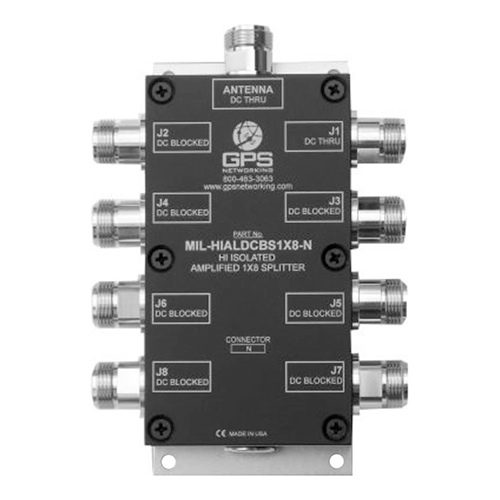

Military Qualified High Isolation Amplified GPS Splitter | 8 Output, TNC Connectors

Product Description

This Military Qualified High Isolated, Amplified, Loaded, DC Blocked, Splitter 1X8 is an active one input, eight output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. This equipment is designed to amplify and split signals within the L-band to provide multiple devices with the signal from a single antenna. Each output port (J1-J8) is isolated from external signals to prevent interference.  In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter via the antenna port. The other ports (J2-J8) are DC blocked and loaded with 200 resistors to simulate antenna current draw which prevents antenna alarm faults. All MIL-Spec splitters are qualified to the rigorous MIL-STD 810F environmental & MIL-STD-461F EMI standards. Custom gain, DC, and connector configurations available on request.

This Military Qualified, High Isolation Amplified GPS Splitter (EDMO# MILHIALDCB) has TNC Connectors.

Specifications

• Weight:
  19.3 oz (547 g)
• Dimensions:
  5.25 x 2.5 x 1.29 in
• Frequency range:
  1.1 to 1.7 GHz
• Impedance:
  50Ω
• Input Voltage:
  3.3–15 VDC
• Current Draw:
  17 mA (typical), 23 mA (max)
• Gain:
  3.0–6.0 dB, 4.5 dB (typical)
• Input SWR:
  2.0:1
• Output SWR:
  2.0:1
• Noise Figure:
  L1: 2.9 dB L2: 5.25 dB
• Gain Flatness:
  0.5 dB (typical), 1.5 dB (max)
• Amplitude Balance:
  0.5 dB
• Phase Balance:
  12°
• Isolation:
  30–50 dB
• Group Delay Flatness:
  0.25 ns (typical), 1.0 ns (max)
• Input P1dB:
  -22.7 dBm

Product Codes

• Mfr Part No
  MIL-HIALDCBS1X8-T
• SCHEDULE B CODE
  9014.80.6000
