Passive Military GPS Splitter | 1 Input, 2 Output, SMA Connector

Product Description

The MIL-LDCBS1X2 military GPS splitter features a one input and two output for splitting RF frequencies from 1.1 GHz — 1.7 GHz. This mil-spec splitter is designed to passively GPS signals within the L-Band to provided multiple devices with GPS signal from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or another device up from the splitter. The other port J2 is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevent alarm faults. All Mil-Spec splitters are qualified to meet the rigorous standards MIL-STD 810F environmental & MIL-STD-461F EMI standards.

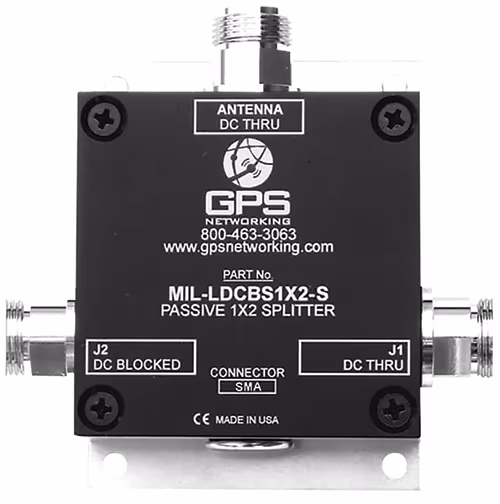

This mil-spec GPS splitter (EDMO# MILLDCBS-S) features one input & two outputs, and has SMA-type connectors.

Specifications

• Weight:
  10.2 lb, max.
• Dimensions:
  1.3 x 3.25 x 2.5 in (without connectors)
• Operating Temperature:
  -57°C to 87°C
• Housing base plate Finish:
  Electroless nickel-plated (MIL-C-26074C, class 1)
• Frequency Range:
  1.1 GHz — 1.7 GHz
• Characteristic Impedance:
  50Ω
• Input SWR:
  2.0:1, max.
• Output SWR:
  2.0:1, max.
• Insertion Loss:
  -3.0 dB to -5.0 dB (-4.0 dB, typical)
• Gain Flatness:
  0.25 dB, typical (1.0 dB, max.)
• Amplitude Balance:
  0.10 dB, typical (1.0 dB, max.)
• Phase Balance:
  1.0°, typical (2.0°, max.)
• Isolation:
  L1: 22 dB L2: 15 dB
• Group Delay Flatness:
  0.10 ns, typical (1.0 ns, max.)
• Connector Option:
  SMA-type female

Product Codes

• Mfr Part No
  MIL-LDCBS1X2-SMA
