Military Networked GPS Passive 1x3 Splitter | 1 input & 3 output, 5VDC

GPS NETWORKING

Call For Pricing

Available to order

EDMO # MILNLDCBS

MFR Part # BMIL-NLDCBS1X3 SMA/12V/MC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Military qualified networked antenna splitters feature one input and multiple output ports for distributing GPS signals to multiple antennas indoors. This military antenna splitter covers the GPS L1, L2, L5, Galileo, and GLONASS frequency bands with excellent gain flatness. This splitter will accept any DC voltage from 8 – 32 VDC and sends regulated 5 VDC to power the GPS antenna on port J1, while ports J2, J3, & J4 remain DC blocked.

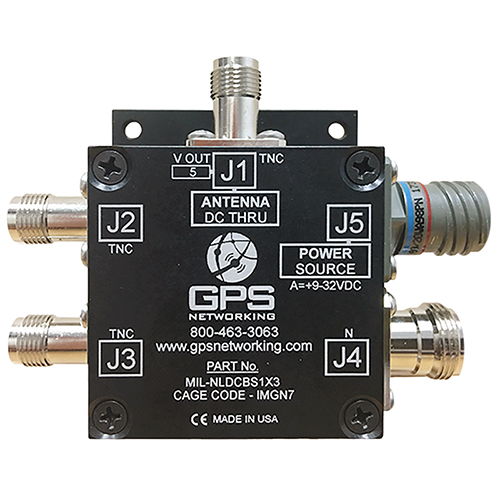

This military networked GPS passive antenna splitter (EDMO# MILNLDCBS) features one input & three inputs and sends 5 VDC to the antenna port J1.

Features

Military qualified to MIL-STD-810D, MIL-STD-461D, and MIL-STD-462 standards
Reliable and Dependable operation on military aircraft
Low group delay of less than 1 ns
Excellent gain flatness: typically 0.5 dB

Specifications

Frequency Range:

1.1 GHz – 1.7 GHz
Impedance:

50Ω
Input SWR:

2.0:1, max.
Output SWR:

1.5:1, typ. (2.0:1 max.)
Insertion Loss:

Ant J2: -7.0 dB to -5.7 dB (6.3 dB, typ.) Ant J3: -7.6 dB to -6.4 dB (-7.0 dB, typ.) Ant J4: -9.1 dB to -7.9 dB (-8.5 dB, typ.)
Gain Flatness:

0.5 dB typ. (1.0 dB max.) between L1 & L2
Isolation:

L2: 10 dB L1: 15 dB
Group Delay Flatness:

<1 ns
Source Voltage:

Customer supplied DC 9-32 VDC (MIL-DTL-5015 10SL DC connector, includes mate)
Output Voltage:

5V @ 130mA
Connector:

SMA-type (female)
