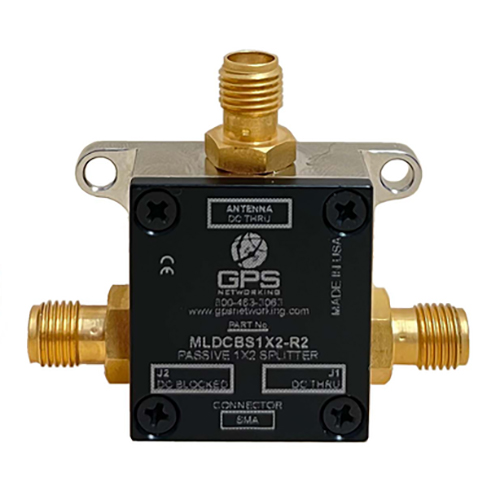

Mini Loaded DC Blocked Splitter | 1 Input, 2 Output, 1.1-1.7 GHz

Mini Loaded DC Blocked Splitter | 1 Input, 2 Output, 1.1-1.7 GHz

GPS NETWORKING

Call For Pricing

Available to order

EDMO # MLDCBS1X2R

MFR Part # MLDCBS1X2-R2-SMA

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This Mini Loaded DC Blocked Splitter 1X2 (EDMO# MLDCBS1X2R2) is a passive one input, two output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. This equipment is designed to passively split signals within the L-band to provide multiple devices with the signal from a single antenna. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices up-line from the splitter. The other port (J2) is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevents antenna alarm faults.

Features

Precise Amplitude Balance: Less than 1 dB variation between ports.
Flat Group Delay: Less than 1ns variation between L1 and L2.
Low Insertion Loss: -3.5 dB loss is typical across all operating
frequencies.
Wide Accepted Frequency Range: Accepts signals from the entire L-Band,
covering all major GNSS constellations.
Efficiently Blocked Ports: Uses 200Ω resistor to prevent antenna
alarm faults from connected devices.
Matched Phase Balance: Less than 2° of variation between ports.
Smallest GPS Antenna Splitter in the World!

Also Purchased

Specifications

Frequency Range:

1.1-1.7 GHz
Characteristic Impedance:

50Ω
Max Input SWR:

2.0:1
Max Output SWR:

2.0:1
Insertion Loss:

-3 dB (min), -3.5 dB (typical), -4.5 dB (max)
Gain Flatness:

0.25 dB (typical), 1.0 dB (max)
Amplitude Balance:

0.1 dB (typical), 1.0 dB (max)
Phase Balance:

1 deg (typical), 2 deg (max)
Isolation:

L1:22 dB L2:15 dB (min), L1:28.4 dB L2:17.3 dB (typical)
Group Delay Flatness:

0.5 ns (typical), 1.0 ns (max)

Product Codes

Mfr Part No

MLDCBS1X2-R2-SMA
ECCN

ear99
SCHEDULE B CODE

8526.91.0070
